The pin-jointed structure shown in Fig. P11.21 is constructed of two 0.025-...

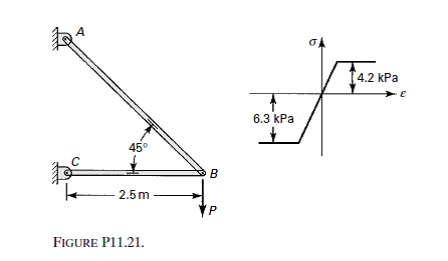

The pin-jointed structure shown in Fig. P11.21 is constructed of two 0.025- m-diameter tubes having the following properties: A = 5.4 x 10-5 m2 I = 3.91 x 10-9 m4, E = 210 GPa. The stress–strain curve for the tube
material can be accurately approximated by three straight lines as shown. If the load P is increased until the structure fails, which tube fails first? Describe the nature of the failure and determine the critical load.
Step-by-Step Solution
Request Solution!
We need at least 10 more requests to produce the solution.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Most questions answered within 3 hours.
-
