(Tortoise and Hare) Produce a graphical version of the Tortoise and Hare simulation (Exerc...

(Tortoise and Hare) Produce a graphical version of the Tortoise and Hare simulation (Exercise). Simulate the mountain by drawing an arc that extends from the bottom-left corner of the window to the top-right corner. The tortoise and the hare should race up the mountain. Implement the graphical output to actually print the tortoise and the hare on the arc for every move. [Hint: Extend the length of the race from 70 to 300 to allow yourself a larger graphics area.]

Exercise

(Simulation: The Tortoise and the Mare) In this problem, you'll re-create the classic race of the tortoise and the hare. You'll use random-number generation to develop a simulation of this memorable event.

Our contenders begin the race at square 1 of 70 squares. Each square represents a possible position along the race course. The finish line is at square 70. The first contender to reach or pass square 70 is rewarded with a pail of fresh carrots and lettuce. The course weaves its way up the side of a slippery mountain, so occasionally the contenders lose ground.

A clock ticks once per second. With each tick of the clock, your application should adjust the position of the animals according to the rules in Fig. 5. Use variables to keep track of the positions of the animals (i.e., position numbers are 1-70). Start each animal at position 1 (the "starting gate"). If an animal slips left before square 1, move it back to square 1.

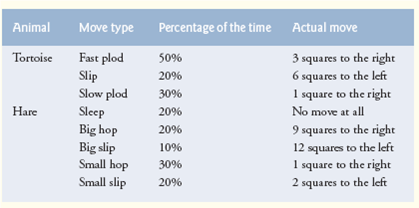

Fig. 5 Rules for adjusting the positions of the tortoise and the hare

Generate the percentages in Fig. by producing a random integer i in the range 1 ≤ i ≤ 10. For the tortoise, perform a "fast plod" when 1 ≤ i ≤ 5, a "slip" when 6 ≤ i ≤ 7 or a "slow plod" when 8 ≤ i ≤ 10. Use a similar technique to move the hare.

Begin the race by displaying

BANG !!!!!

AND THEY'RE OFF !!!!!

Then, for each tick of the clock (i.e., each repetition of a loop), display a 70-position line showing the letter T in the position of the tortoise and the letter H in the position of the hare. Occasionally, the contenders will land on the same square. In this case, the tortoise bites the hare, and your application should display OUCH !!! beginning at that position. All output positions other than the T, the H or the OUCH !!! (in case of a tie) should be blank.

After each line is displayed, test for whether either animal has reached or passed square 70. If so, display the winner and terminate the simulation. If the tortoise wins, display TORTOISE WINS! !! YAY!!! If the hare wins, display Hare wins. Yuch. If both animals win on the same tick of the clock, you may want to favor the tortoise (the "underdog"), or you may want to display It's a tie. If neither animal wins, perform the loop again to simulate the next tick of the clock. When you're ready to run your application, assemble a group of fans to watch the race. You'll be amazed at how involved your audience gets!

Later in the book, we introduce a number of Java capabilities, such as graphics, images, animation, sound and multithreading. As you study those features, you might enjoy enhancing your tortoise-and-hare contest simulation.
