Repeat Problem 1−22 using MATLAB to perform the calculations. Create a vector for the voltage values, v = [15 5 10 −10 20 20 ], and a vector for the current values, i = [−1 1 2 1 3 2]. Compute the corresponding vector for the power values, p, using element-by-element multiplication (.*) and then use the sum command to verify the power balance.

Problem 1−22

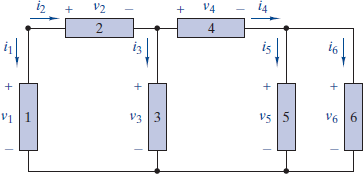

Figure P1−22 shows an electric circuit with a voltage and a current variable assigned to each of the six devices. The device voltages and currents are observed to be

Find the power associated with each device and state whether the device is absorbing or delivering power. Use the power balance to check your work.

Figure P1−22
