If R2 becomes open in Fig. 7-15, a. the voltage across points A and B will decrease...

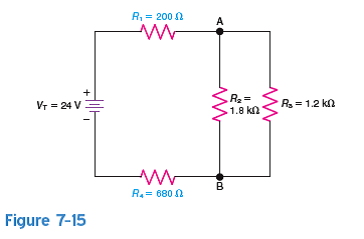

If R₂ becomes open in Fig. 7-15,

a. the voltage across points A and B will decrease.

b. the resistors R₁, R₃, and R₄will be in series.

c. the total resistance, R_T, will decrease.

d. the voltage across points A and B will measure 24 V.
