Problem

Repeat Problem 1 for the shaft in Fig. 1. The minimum moment should be for the portion bet...

Repeat Problem 1 for the shaft in Fig. 1. The minimum moment should be for the portion between the two pulleys.

Figure 1

Problem 1

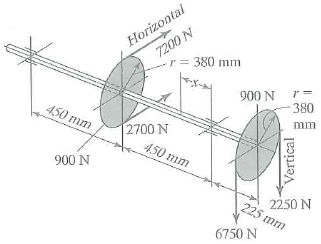

Make the horizontal and vertical load and moment diagrams for the shaft shown in Fig. 2. Find the location and value of the minimum bending moment in the shaft for the portion lying between the left pulley and the right bearing.

Figure 2
