For the network of Fig. 9.88:a. Determine and b. Find gm0 and gm.c. Calculate the midband...

For the network of Fig. 9.88:

a. Determine and

b. Find gm0 and gm.

c. Calculate the midband gain of Av = Vo/Vi.

d. Determine Zi.

e. Calculate

f. Determine  and

g. Determine the low-cutoff frequency.

h. Sketch the asymptotes of the Bode plot defined by part (f).

i. Sketch the low-frequency response for the amplifier using the results of part (f).

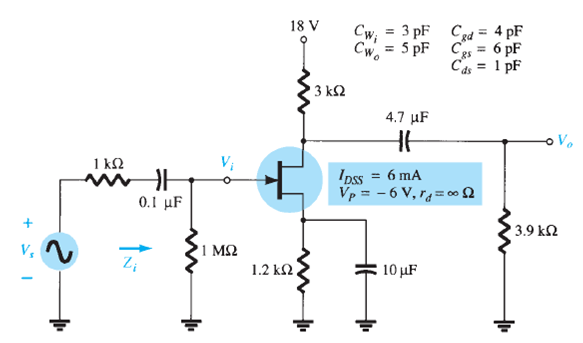

FIG. 9.88
