Implementing logic equations. Using Example 16.26 as a guide, compose a Matlab script that...

Implementing logic equations. Using Example 16.26 as a guide, compose a Matlab script that forms the following logic equations, and generates and displays the truth table.

1.

2.

3.

Example 16.26

Truth Table Verification

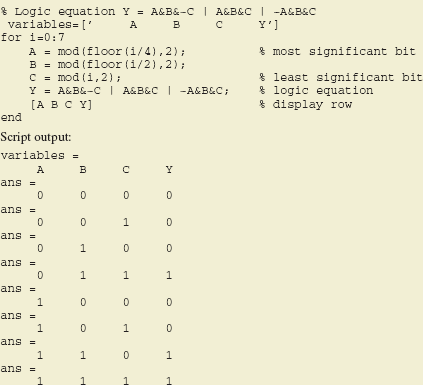

A logic circuit is verified by entering its logic equation and generating the truth table. Figure 16.23 shows the Matlab script that prints the truth table for specified logic equation.

Figure 16.23

Matlab script that prints the truth table corresponding to a logic equation.

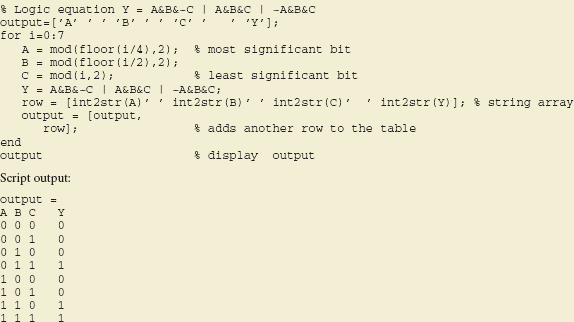

Figure 16.24 shows the Matlab script that produces a nicer looking truth table by displaying the output as a 2D string array.

Figure 16.24

Matlab script that prints a denser truth table corresponding to a logic equation.
