Problem

All problem solutions must include FBDs.Determine the internal normal force, shear force,...

All problem solutions must include FBDs.

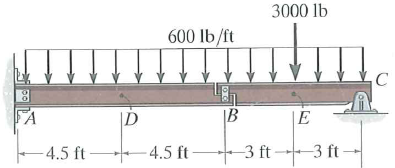

Determine the internal normal force, shear force, and moment at points D and E in the compound beam. Point E is located just to the left of the 3000-lb force. Assume the support at A is fixed and the beam segments are connected together by a short link at B.
