If the horizontal force P is removed, determine the largest angle θ that will cause the...

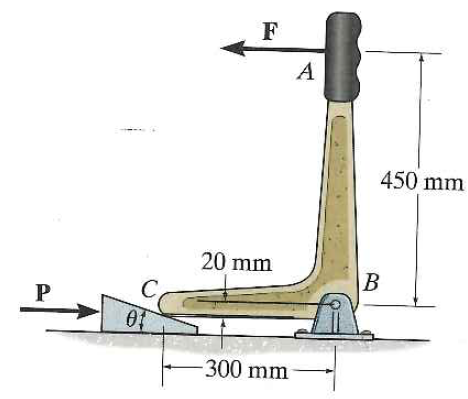

If the horizontal force P is removed, determine the largest angle θ that will cause the wedge to be self-locking regardless of the magnitude of force F applied to the handle. The coefficient of static friction at all contacting surfaces is
= 0.3.
