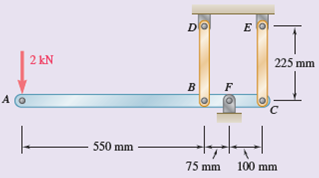

Each of the rods BD and CE is made of brass (E = 105 GPa) and has a cross-sectional area of 200 mm2. Determine the deflection of end A of the rigid member ABC caused by the 2-kN load.
