Problem

The load cycle for a shaft is shown in Fig. 1. The shaft is driven by a belt and can be as...

The load cycle for a shaft is shown in Fig. 1. The shaft is driven by a belt and can be assumed to receive a constant driving torque. Find the energy delivered per cycle for a flywheel mounted on the shaft for a coefficient of fluctuation of 0.10. Speed is 150 rpm. Find the outside diameter if the flywheel is solid and cut from in. steel plate.

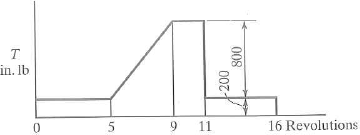

Figure 1
