Using a SimulatorProcedure(a) Construct the simulated circuit shown, using whatever simula...

Using a Simulator

Procedure

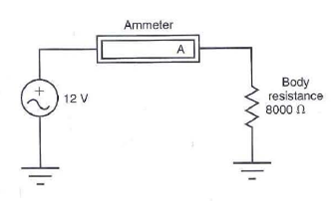

(a) Construct the simulated circuit shown, using whatever simulation software package is available to you.

---

(b) Record the body current flow with the body connected to the 12 V source.

---

(c) Repeat with the value of the source voltage changed to 120 V.

---

(d) Repeat with the value of the source voltage changed to 1200 V.

---

(e) With reference to Figure 1-8, make note of what effect the different current levels would have on a person.

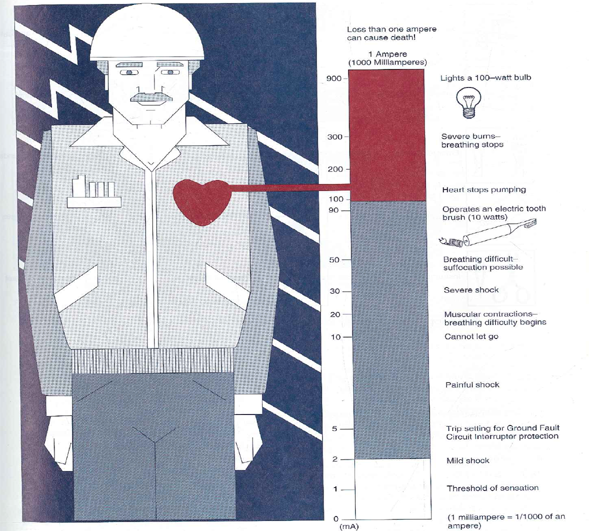

Figure 1-8: Relative magnitude and effect of electric current (mA) on the body. (Courtesy Ontario Hydro.)
