Problem

Draw the logic diagram of a four-bit register with four D flip-flops and four 4 × 1 mult...

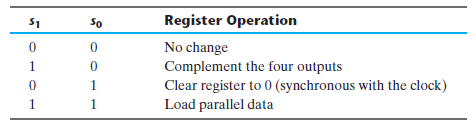

Draw the logic diagram of a four-bit register with four D flip-flops and four 4 × 1 multiplexers with mode selection inputs s ₁ and s ₀ . The register operates according to the following function table. (HDL—see Problem 6.35(e), (f).)
