Repeat Problem 13.18 for the circuit given in Problem 13.13. Assume (reference problem...

Repeat Problem 13.18 for the circuit given in Problem 13.13. Assume

(reference problem 13.18)

For the circuit given in Problem 13.3, replace the circuit elements by their discrete-time equivalent circuits and write nodal equations in a form suit-able for computer solution of the sending-end and receiving-end voltages. Give equations for all dependent sources. Assume

(reference problem 13.3)

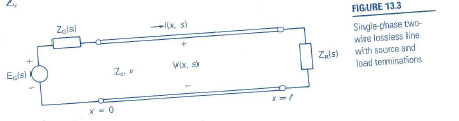

Referring to the single-phase two-wire lossless line shown in Figure 13.3, the receiving end is terminated by an inductor with The source voltage at the sending end is a step, Both the line and inductor are initially unenergized. Determine and plot the voltage at the center of the line
