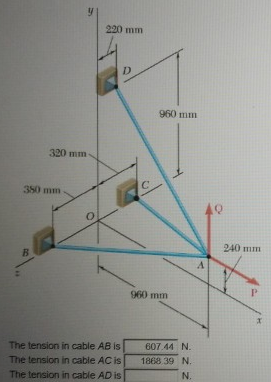

Three cables are connected at A, where the forces P and Q are applied as shown. Determine the tension in each cable knowing that P = 3180 N and Q = 0.
Three cables are connected at A, where the forces P and Q are applied as shown. Determine the tension in each cable knowing that P = 3180 N and Q = 0. (Round the final answers to two decimal places )
Homework Answers
Add Answer to:
Three cables are connected at A, where the forces P and Q are applied as shown. Determine the tension in each cable knowing that P = 3180 N and Q = 0.
Three cables are connected at A, where the forces P and Q are applied as shown....
Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that P= 1400 N, determine the value of Q for which cable AD is just taut. 220 mm 960 mm 320 mm 380 mm 240 mm 960 mm The value of Q is
A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the ca...
A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the cable AC is 576 lb. (Round the final answer to two decimal places.)
Knowing that the tension in cable AC of the system is 400 N, determine the magnitude...
Knowing that the tension in cable AC of the system is
400 N, determine the magnitude of the force P.
(Round the final answer to two decimal places.)
Knowing that the tension in cable AC of the system is
400 N, determine the weight W of the container. (Round the
final answer to two decimal places.)
A container of weight Wis suspended from ring A, to which cables AC and AE are attached. A force P is applied to the...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
plz answer in a timely manner!! plz CIRCLE/BOX IN thr answer 2 Three cables are connected...
plz answer in a timely manner!! plz CIRCLE/BOX IN thr
answer
2 Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that Q = o, find the value of P for which the tension in cable AD is 335 N. 220 mm 10 points eBook Hint 320 mm Print References 960 mmm The value of P isN.
Two cables tied together at C are loaded as shown. Knowing that the maximum allowable tension...
Two cables tied together at C are loaded as shown. Knowing that the maximum allowable tension in each cable is 650 N, determine (a) the magnitude of the largest force P which may be applied at C, (b) the corresponding value of a.
Two forces P and Q are applied to the lid of a storage bin as shown. Knowing that P = 48 N and Q = 60 N
Two forces P and Q are applied to the lid of a storage bin as shown. Knowing that P = 48 N and Q = 60 N, determine by trigonometry the magnitude and direction of the resultant of the two forces.
Two forces P and Q are applied to the lid of a storage bin as shown, where P = 48 N, Q = 78 N.
Two forces P and Q are applied to the lid of a storage bin as shown, where P = 48 N, Q = 78 N. Answer part a. before answering part b. Using trigonometry, determine the direction of the resultant of the two forces. (Round the final answer to a single decimal place. result should be an acute angle measured from a horizontal axis.) The direction of the resultant of the two forces is _______ °.
Knowing that the tension in cable BCis 760 N, determine the resultant of the three forces...
Knowing that the tension in cable BCis 760 N, determine the resultant of the three forces exerted at Point B of beam AB 840 mm- L= 1160 mm 800 mm 13 12 780 N 500 N The magnitude of the resultant of the three forces is The direction of the resultant of the three forces is γ N.
A pole is held by three separate cables. Knowing that a=lm, that the tension in cable...
A pole is held by three separate cables. Knowing that a=lm, that the tension in cable DE is 500N and that the pole has a mass of 10kg applied at D, determine; est adres ma ions a) The reactions at the BALL-AND-SOCKET support O. b) The tension in cable DC and BA. GHTEDATE rotect by permission to re clarificati UNIVEL arge? clarifice UNIV ans 4a B. D PAR 20a A COPYRIGHTS 12á VERS E TAL с 90 18á 15a N...
Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that P= 1400 N, determine the value of Q for which cable AD is just taut. 220 mm 960 mm 320 mm 380 mm 240 mm 960 mm The value of Q is
Knowing that the tension in cable AC of the system is
400 N, determine the magnitude of the force P.
(Round the final answer to two decimal places.)
Knowing that the tension in cable AC of the system is
400 N, determine the weight W of the container. (Round the
final answer to two decimal places.)
A container of weight Wis suspended from ring A, to which cables AC and AE are attached. A force P is applied to the...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
plz answer in a timely manner!! plz CIRCLE/BOX IN thr
answer
2 Three cables are connected at A, where the forces P and Q are applied as shown. Knowing that Q = o, find the value of P for which the tension in cable AD is 335 N. 220 mm 10 points eBook Hint 320 mm Print References 960 mmm The value of P isN.
Two cables tied together at C are loaded as shown. Knowing that the maximum allowable tension in each cable is 650 N, determine (a) the magnitude of the largest force P which may be applied at C, (b) the corresponding value of a.
Knowing that the tension in cable BCis 760 N, determine the resultant of the three forces exerted at Point B of beam AB 840 mm- L= 1160 mm 800 mm 13 12 780 N 500 N The magnitude of the resultant of the three forces is The direction of the resultant of the three forces is γ N.
A pole is held by three separate cables. Knowing that a=lm, that the tension in cable DE is 500N and that the pole has a mass of 10kg applied at D, determine; est adres ma ions a) The reactions at the BALL-AND-SOCKET support O. b) The tension in cable DC and BA. GHTEDATE rotect by permission to re clarificati UNIVEL arge? clarifice UNIV ans 4a B. D PAR 20a A COPYRIGHTS 12á VERS E TAL с 90 18á 15a N...
