A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the ca...

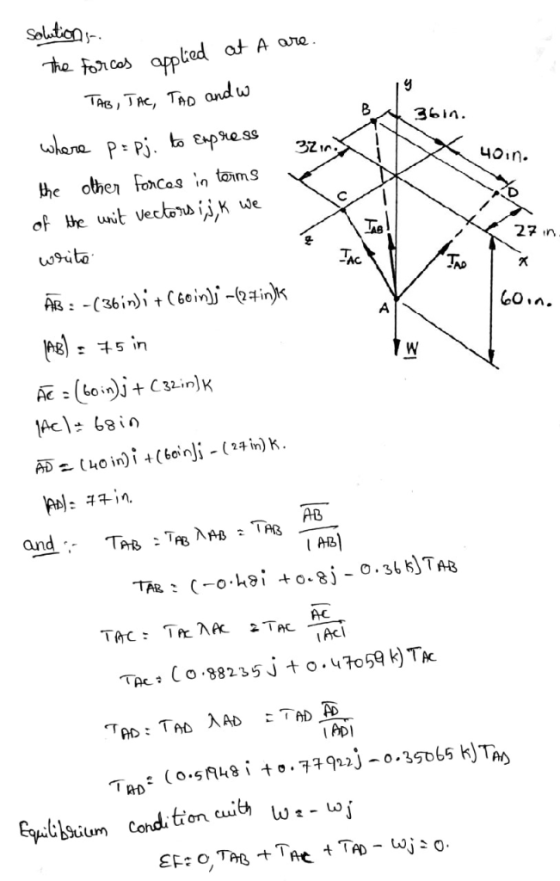

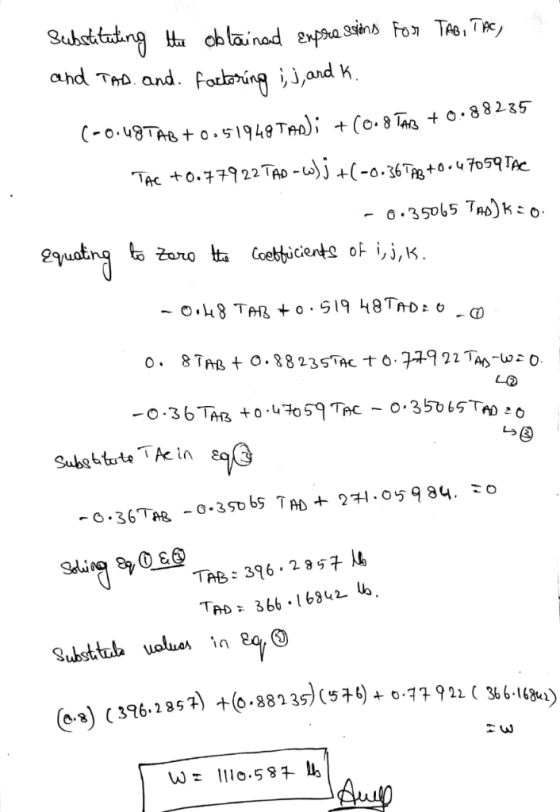

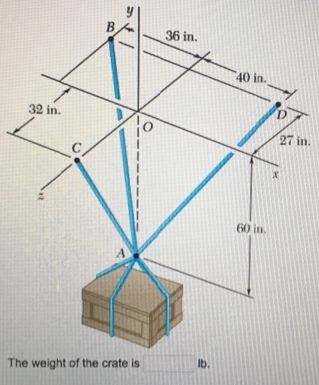

A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the cable AC is 576 lb. (Round the final answer to two decimal places.)
Homework Answers
Add Answer to:
