Boom AC has negligible weight and is in equilibrium. The boom is supported by cables at D and E and a ball-and-socket joint at A. The suspended crate weighs 114 lb.
What is the tension (lb) in cable BDC?
| What is the tension (lb) in cable CE? |
| What is the x component of the reaction (lb) (exerted on the boom by the wall) at A? |
What is the y component of the reaction (lb) at A?
What is the z component of the reaction (lb) A?
Homework Answers

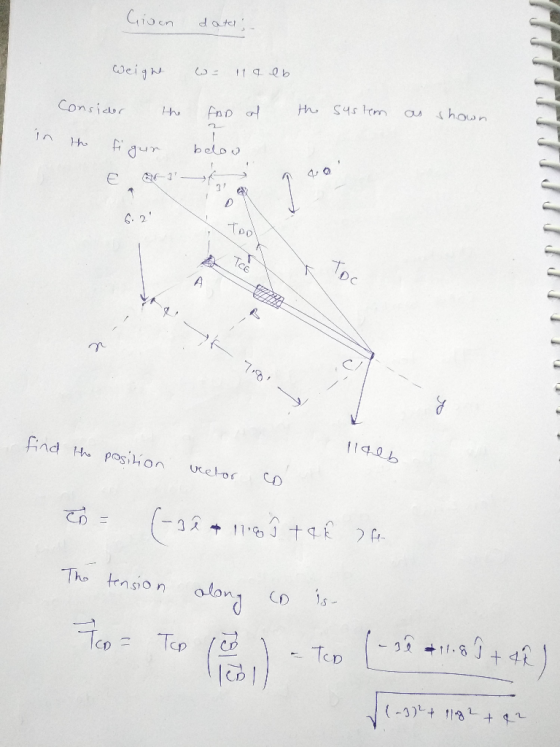

![TOD IDD = h tar TOO agit 4 J (-317 (-411 + a2/ TBD = TAD lagê -a ↑ + 4 f) TBP = Tool -0.968 ê -0.625 ↑ +0.625 Ê ] Que Resolve](http://img.homeworklib.com/questions/a6951240-aeb8-11eb-b5b0-d7d965ffda99.png?x-oss-process=image/resize,w_560)
Add Answer to:
Boom AC has negligible weight and is in equilibrium.
The boom is supported by cables at...
The boom AC is supported at A by a ball- and-socket joint and by two cables...
The boom AC is supported at A by a ball- and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the y component of reaction at A if a crate has a weight of 98.03 lb..
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC...
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the x-component of the reaction at A if the crate has a weight of 71 lb. 2 3 ft 3 ft 4 ft 6 ft 4 ft 8 ft
How to solve? The uniform steel boom in Fig. 4-22a weighs 500 lb. It is supported by two cables CE and CD, and a...
How to solve?
The uniform steel boom in Fig. 4-22a weighs 500 lb. It is supported by two cables CE and CD, and a ball-and-socket joint at A. The cable supporting the 1000-lb load passes over a small pulley at B. Find the tension in cable CE and in cabl-e CD 4 ft 12 ft 12 ft 6 ft ft 18 ft rted by cables .r
The uniform steel boom in Fig. 4-22a weighs 500 lb. It is supported by...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine th...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
1. ( 25 points) The boom AB is supported by a ball & socket joint at...
1. ( 25 points) The boom AB is supported by a ball & socket joint at A and at B with the cable BC and a link. The tension in BC = 900 N. a) Draw a complete FBD of the boom. b) Find the resultant of the tension in cable BC and the two loads, 750 lb and 500 lb. e) Find the magnitude of the resultant di Find the moment about of the force in cable BC and...
A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the ca...
A crate is supported by three cables as shown. Determine the weight of the crate knowing that the tension in the cable AC is 576 lb. (Round the final answer to two decimal places.)
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted...
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted upon by the 820-lb force shown in the figure. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. (Round the final answer to one decimal place.) eBook 6 ft Hint E Print 6 ft References D B 7 ft 6 ft C 4 ft w The tension in cable BD is The tension in cable BE is The...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine the tension in these wires. (Figure 1) Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. FAD-Value Units Submit My Answers Give Up Incorrect; Try Again, 4 attempts remaining Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FAC- Value Units |...
The boom AB is held in equilibriuum by a ball-andsocket joint at A and a pulley...
The boom AB is held in
equilibriuum by a ball-andsocket joint at A and a pulley and cord
system as shown. Determine the x, y, z components of reaction at A
and the tension in cable DEC if F=-1500k lb. (Note that pulley at E
is at the coordinates x = 0, y = 8 ft and z = 1 ft.)
2. The boom AB is held in equilibriuum by a ball-and socket joint at A and a pulley and...
Question 2: (15 Point) The boom ABC is held in place by two cables and a...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
The boom AC is supported at A by a ball- and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the y component of reaction at A if a crate has a weight of 98.03 lb..
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the x-component of the reaction at A if the crate has a weight of 71 lb. 2 3 ft 3 ft 4 ft 6 ft 4 ft 8 ft
How to solve?
The uniform steel boom in Fig. 4-22a weighs 500 lb. It is supported by two cables CE and CD, and a ball-and-socket joint at A. The cable supporting the 1000-lb load passes over a small pulley at B. Find the tension in cable CE and in cabl-e CD 4 ft 12 ft 12 ft 6 ft ft 18 ft rted by cables .r
The uniform steel boom in Fig. 4-22a weighs 500 lb. It is supported by...
Solve ay four ME 246 Q.i A container of weight W - 1165 N is supported by threecables 530 mm as shown. Determine the tension in each cable. 600 mm The uniforma steel boom in Fit 22a weighs soo ib. It is supported by two cabks CE uai CD. and a ball-and socket joint at A. The cable supporting the 1000-6 dasses over a small pulley at B. Find the tension in cable CE and in cable 1 4 rt...
1. ( 25 points) The boom AB is supported by a ball & socket joint at A and at B with the cable BC and a link. The tension in BC = 900 N. a) Draw a complete FBD of the boom. b) Find the resultant of the tension in cable BC and the two loads, 750 lb and 500 lb. e) Find the magnitude of the resultant di Find the moment about of the force in cable BC and...
Check my work 4 Problem 04.105 - Boom support 1 points A 10-ft boom is acted upon by the 820-lb force shown in the figure. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. (Round the final answer to one decimal place.) eBook 6 ft Hint E Print 6 ft References D B 7 ft 6 ft C 4 ft w The tension in cable BD is The tension in cable BE is The...
Item 6 Part A The 145-lb crate is supported by cables AB, AC, and AD. Determine the tension in these wires. (Figure 1) Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. FAD-Value Units Submit My Answers Give Up Incorrect; Try Again, 4 attempts remaining Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FAC- Value Units |...
The boom AB is held in
equilibriuum by a ball-andsocket joint at A and a pulley and cord
system as shown. Determine the x, y, z components of reaction at A
and the tension in cable DEC if F=-1500k lb. (Note that pulley at E
is at the coordinates x = 0, y = 8 ft and z = 1 ft.)
2. The boom AB is held in equilibriuum by a ball-and socket joint at A and a pulley and...
Question 2: (15 Point) The boom ABC is held in place by two cables and a ball-and-socket support at A. Force F = 0 i + F j + F k kN is applied at C. Ifthe tension in cable BE is 9-kN and tension in cable BD is 6.4-kN, determine the magnitude of the force Fand D the reactions at A. Weight of the boom is negligible. Do not use geometry .5 m- 1 m
