The point charge at the bottom of the figure is Q = +17 nC, and the curve is a circular arc

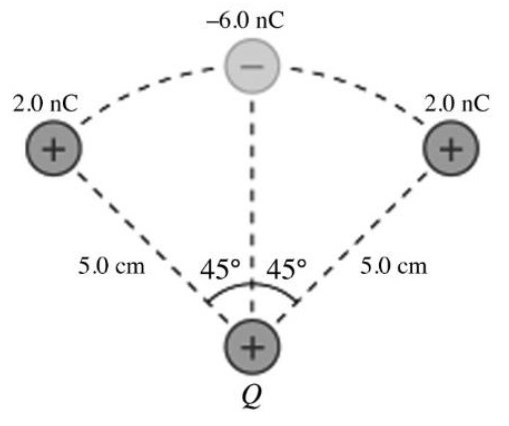

The point charge at the bottom of the figure is Q = +17 nC, and the curve is a circular arc. What is the magnitude of the force on the charge Q due to the other point charges shown?
1.9 x 10-4N
1.6 x 10-4 N
1.2 x 10-4N
2.3 x 10-4N

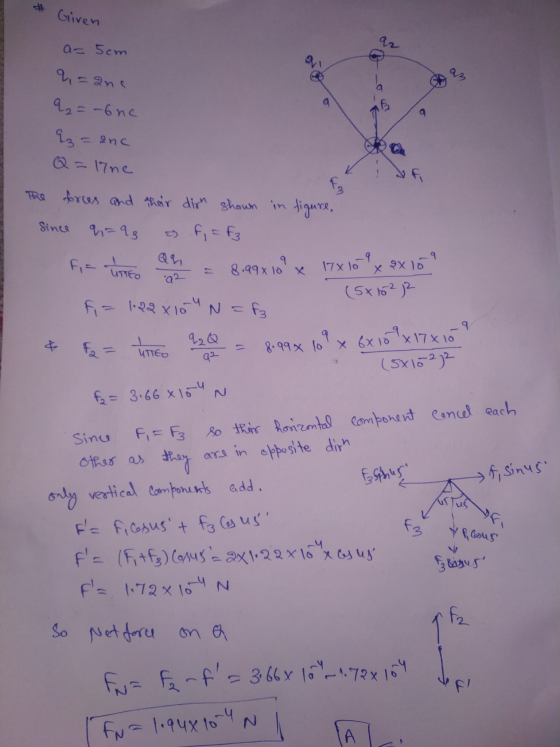

Homework Answers
Add Answer to:
The point charge at the bottom of the figure is Q = +17 nC, and the curve is a circular arc
31. Three point charges are located on a circular arc as shown in Figure P23.31. (a)...
31. Three point charges are located on a circular arc as shown in Figure P23.31. (a) What is the total electric field at P, the center of the arc? (b) Find the elec- tric force that would be exerted on a -5.00-nC point charge placed at F +3.00 nC 4.00 cm -2.00 nC 30.0 30.0。 4.00 cm +3.00 nC Figure P23.31 25. Four charged particles are at the corners of a square of side a as shown in Figure P23.25....
hree point charges are located on a circular arc as shown in the figure below. (Take...
hree point charges are located on a circular arc as shown in the figure below. (Take r 4.28 cm. Let to the right be the ex d and up along the screen be the +y direction.) +3,00 n -2.00nC s0.0 3.00 n (a) What is the total electric field at P, the center of the arc? within 10% of the correct value. This may be due to rounder error, or you could have a mistake in your accuracy to minimize...
Three point charges are located on a circular arc as shown in the figure below.
Three point charges are located on a circular arc as shown in the figure below. (Let r = 4.16 cm. Assume that the +x-axis is to the right and the y-axis is up along the page.) (a) What is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a -5.47 nC point charge placed at P.
Three point charges are located on a circular arc as shown in the figure below.
Three point charges are located on a circular arc as shown in the figure below. (Take r = 3.76 cm. Let to the right be the +x direction and up along the screen be the ty direction.) (a) What is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a -4.66-nC point charge placed at P.
23. Three point charges are located on a circular arc as shown in Figure P23.23. (a)...
23. Three point charges are located on a circular arc as shown in Figure P23.23. (a) What is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a-5.00-nC point charge placed at P. +3.00 nC 4.00 cm -2.00 nC 30.0° 30.0 4.00 cm +3.00 nC
Three point charges are located on a circular arc as shown in the figure below. (Take r = 3.64 cm. Let to the right be...
Three point charges are located on a circular arc as shown in the
figure below. (Take r = 3.64 cm. Let to the right be the +x
direction and up along the screen be the +y direction.)(a) What is the total electric field at P, the center of the
arc? = _________ + __________(b) Find the electric force that would be exerted on a -5.43 nC
point charge placed at P. = + Three point charges are located on a...
Three point charges are located on a circular arc as shown in the figure below. (Taker...
Three point charges are located on a circular arc as shown in the figure below. (Taker 3.76 cm. Let to the right be the +x direction and up along the screen be the y direction.) +3.00 nC -2.00 nC 30.0 30.0° +3.00 nC (a) what is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a -4.87-nC point charge placed at P. i -3 Need Help?Read It
Three point charges are located on a circular arc as shown inthe figure below. (Let...
Three point charges are located on a circular arc as shown in
the figure below. (Let r = 4.32 cm. Assume that the +x-axis is to
the right and the +y-axis is up along the page.)(a) What is the total electric field at P, the center of the
arc?(b) Find the electric force that would be exerted on a−5.34 nC point charge placed at P.
The charge in the bottom right corner of Figure 17.2is Q = - 90 nC. What...
The charge in the bottom right corner of Figure 17.2is
Q = - 90 nC. What is the magnitude of the electricalforce
on Q?
Figure 17.2
?? x 10-2 N
Three point charges are located on a circular arc as shown in the figure below. (Take...
Three point charges are located on a circular arc as shown in the figure below. (Take r4.08 cm. Let to the right be the +x direction and up along the screen be the ty direction.) +3.00 nC -2.00 nC 30.0° 30.0° +3.00 nC (a) What is the total electric field at P, the center of the arc? E- 172000x Your response is off by a multiple of ten.i0 (b) Find the electric force that would be exerted on a -4.62-nC...
31. Three point charges are located on a circular arc as shown in Figure P23.31. (a) What is the total electric field at P, the center of the arc? (b) Find the elec- tric force that would be exerted on a -5.00-nC point charge placed at F +3.00 nC 4.00 cm -2.00 nC 30.0 30.0。 4.00 cm +3.00 nC Figure P23.31 25. Four charged particles are at the corners of a square of side a as shown in Figure P23.25....
hree point charges are located on a circular arc as shown in the figure below. (Take r 4.28 cm. Let to the right be the ex d and up along the screen be the +y direction.) +3,00 n -2.00nC s0.0 3.00 n (a) What is the total electric field at P, the center of the arc? within 10% of the correct value. This may be due to rounder error, or you could have a mistake in your accuracy to minimize...
23. Three point charges are located on a circular arc as shown in Figure P23.23. (a) What is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a-5.00-nC point charge placed at P. +3.00 nC 4.00 cm -2.00 nC 30.0° 30.0 4.00 cm +3.00 nC
Three point charges are located on a circular arc as shown in the
figure below. (Take r = 3.64 cm. Let to the right be the +x
direction and up along the screen be the +y direction.)(a) What is the total electric field at P, the center of the
arc? = _________ + __________(b) Find the electric force that would be exerted on a -5.43 nC
point charge placed at P. = + Three point charges are located on a...
Three point charges are located on a circular arc as shown in the figure below. (Taker 3.76 cm. Let to the right be the +x direction and up along the screen be the y direction.) +3.00 nC -2.00 nC 30.0 30.0° +3.00 nC (a) what is the total electric field at P, the center of the arc? (b) Find the electric force that would be exerted on a -4.87-nC point charge placed at P. i -3 Need Help?Read It
Three point charges are located on a circular arc as shown in
the figure below. (Let r = 4.32 cm. Assume that the +x-axis is to
the right and the +y-axis is up along the page.)(a) What is the total electric field at P, the center of the
arc?(b) Find the electric force that would be exerted on a−5.34 nC point charge placed at P.
The charge in the bottom right corner of Figure 17.2is
Q = - 90 nC. What is the magnitude of the electricalforce
on Q?
Figure 17.2
?? x 10-2 N
Three point charges are located on a circular arc as shown in the figure below. (Take r4.08 cm. Let to the right be the +x direction and up along the screen be the ty direction.) +3.00 nC -2.00 nC 30.0° 30.0° +3.00 nC (a) What is the total electric field at P, the center of the arc? E- 172000x Your response is off by a multiple of ten.i0 (b) Find the electric force that would be exerted on a -4.62-nC...
