The unfinished concrete channel is intended to have a downward slope of 0.002 and sloping sides at 60°

Question

Question

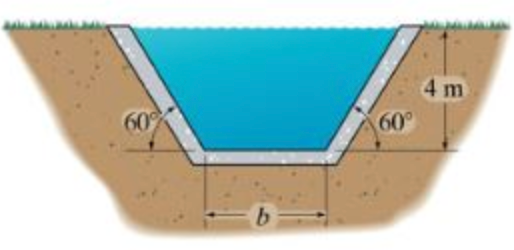

The unfinished concrete channel is intended to have a downward slope of 0.002 and sloping sides at 60° (Figure 1)

Part A

If the flow is estimated to be 180 m³/s, determine the base dimension b of the channel bottom.

engineering Civil-Engineering

Answer 1

Answer #1

For unfinished concrete channel the value of manning's constant is 0.013

for discharge through trapezoidal channel-

For 60 degree slope

By trial and error we get value of b-

Answer 2

Similar Homework Help Questions

A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174,...

A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174, base width of 5 m, and a side slope of 1:1. For a flow rate of 25 m3 /s, determine the normal depth and the state of the flow. Use Fr = v/(gD)0.5, where D is the hydraulic mean depth. (10 Marks)
Water flows through the channel. The depth of flow is y =1.75 m and the downward slope of the channel is 0.006

Water flows through the channel. The depth of flow is y =1.75 m and the downward slope of the channel is 0.006. The sides of the channel are finished concrete. (Figure 1) Part A Determine the volumetric flow of water through the channel.
A channel is constructed of unfinished concrete. It is 10 ft wide, has a slope of...

A channel is constructed of unfinished concrete. It is 10 ft wide, has a slope of 0.005 and carries a flow of 120 cu.ft/s. The flow encounters an obstruction that rises 0.5 ft above the channel bottom. Will a hydraulic jump occur? Justify your answer

1 Review The channel is made of unfinished concrete. (Figure 1) Part A Determine the required...

1 Review The channel is made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 380 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > EVO ALQ IT vec a 0 2 ? So = 7.97 • 10-4 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining 8ft Provide Feedback Next >
Water flows uniformly down the triangular channel having a downward slope of 0.0095

Water flows uniformly down the triangular channel having a downward slope of 0.0095. The walls are made of finished concrete. (Figure 1) Part A Determine the volumetric flow when y = 1.7 m.
Water flows uniformly down the triangular channel having a downward slope of 0.0079.

Water flows uniformly down the triangular channel having a downward slope of 0.0079. The walls are made of finished concrete. (Figure 1) Part A Determine the volumetric flow when y = 2.5 m.

Problem 12.53 13 of 13 II Review The channel made of unfinished concrete. (Figure 1) Part...

Problem 12.53 13 of 13 II Review The channel made of unfinished concrete. (Figure 1) Part A Determine the required slope if the flow is to be 220 ft/s when the depth is y = 6 ft. Take n = 0.014. Express your answer using three significant figures. Figure < 1 of 1 > IVO AE If vec Submit Request Answer 8 ft < Return to Assignment Provide Feedback
The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when...

The sewer pipe, made of unfinished concrete, is required to carry water at 45 ft/s when it is half full. The downward slope of the pipe is 0.0015. (Figure 1) Part A Determine the required internal radius of the pipe. Express your answer using three significant figures. VAE IT vec ? Figure < 1 of 1 R = 2.53 ft Submit Previous Answers Request Answer R X Incorrect; Try Again; 4 attempts remaining Provide Feedback Water flows uniformly down the...
Please give detailed solution A long rectangular unfinished concrete channel of width 3.6 m carries a...

Please give detailed solution A long rectangular unfinished concrete channel of width 3.6 m carries a flow of 14 m/s, with an abrupt change in slope from 0.0019 to 0.0180 at the midpoint of the channel. Determine: a) the uniform flow depths upstream and downstream of the change in slope, b) the critical flow depth, and c) the water surface profile types upstream and downstream of the change in slope.

Review The channel is made of unfinished concrete (Figure 1) y = 1.09 m Previous Answers...

Review The channel is made of unfinished concrete (Figure 1) y = 1.09 m Previous Answers Correct Part B Figure (< 1 of 1 > Determine the corresponding critical slope Express your answer using three significant figures. A vec mo ? Submit Request Answer Provide Feedback Next > 6:27 PM Type here to search Ba ^ao (1) 8/5/2019 10
