A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174,...
A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174, base width of 5 m, and a side slope of 1:1. For a flow rate of 25 m3 /s, determine the normal depth and the state of the flow. Use Fr = v/(gD)0.5, where D is the hydraulic mean depth. (10 Marks)
Homework Answers

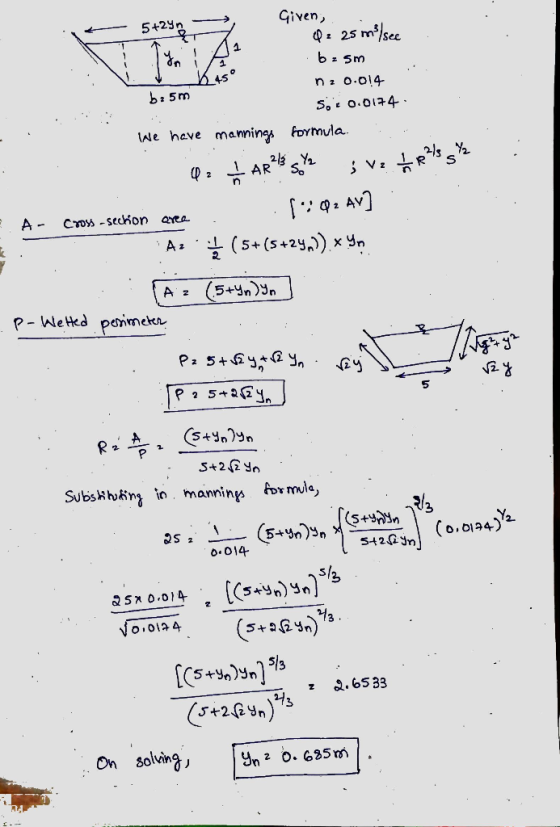

Therefore, Normal depth = 0.685 meters

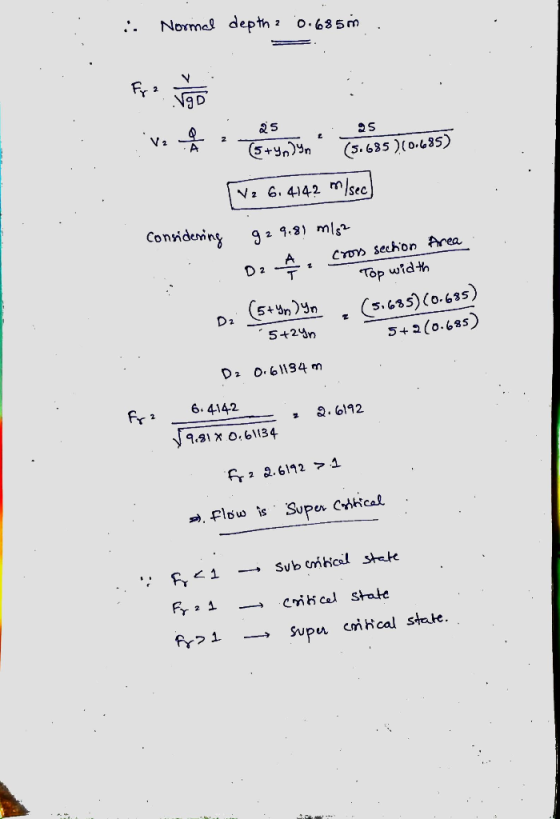

And flow is in super-critical state
Please do comment for further clarification.
Please give positive rating, if u find this solution helpful.
Thank you :)
Add Answer to:
A trapezoidal channel made of unfinished concrete n = 0.014 has
a bottom slope of 0.0174,...
Water flows at 4 m3/s along a horizontal channel made of unfinished concrete (n=0.014). If the...
Water flows at 4 m3/s along a horizontal channel made of unfinished concrete (n=0.014). If the channel has a width of 2 m, and the water depth at the control section A is 0.9 m, approximate the depth at the section where x = 2 m from the control section. Use increments of Δd = 0.004 m and plot the profile for 0.884 m ≤ d ≤ 0.9 m.
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2...
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2 horizontal to 1 vertical has a slope 0,002 and is designed for a discharge of 160 cts. Determine the water depth in the channel,
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and...
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is S=0.0002 and the Manning roughness coefficient is n=0.014. Compute: a) the depth of uniform flow if Q = 12.1 m3/s b) the state of the flow. Y Y. b = 6 m Fig. Q2c
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries...
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries a discharge of 450 cfs with a normal depth of 3.5 ft. The elevations at the beginning and end of the channel are 685 and 650 ft., respectively. Determine the length of the channel if n = 0.02. #5 [5 points] Water is flowing at a rate of 4.5 m3/s in a trapezoidal channel whose bottom width is 2.4 m and side slopes are...
A channel is constructed of unfinished concrete. It is 10 ft wide, has a slope of...
A channel is constructed of unfinished concrete. It is 10 ft wide, has a slope of 0.005 and carries a flow of 120 cu.ft/s. The flow encounters an obstruction that rises 0.5 ft above the channel bottom. Will a hydraulic jump occur? Justify your answer
A trapezoidal channel has a side slope of 1:1 and a bed width of 6.0 m....
A trapezoidal channel has a side slope of 1:1 and a bed width of 6.0 m. A hydraulic jump with a height of 0.5 m (i.e. the difference between water surface elevation upstream and downstream of the jump) is encountered in the channel. If the channel has a discharge of 10 m3/s, determine the critical depth in the channel. Plot the momentum curve and determine the flow depth immediately upstream and downstream of the jump.
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio...
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio of 3:1. The Manning’s n of the channel is 0.025, and it is laid on a slope of 0.001. If the water depth is 2 m at the downstream end, write and submit an R script to compute the water surface profile for a discharge of 30 m3 /s. Also submit a plot of the water profile in elevation (m) for 1000 m channel...
('15 Marks) Question 4 An earth drainage ditch may be approximated a trapezoidal channel has a...
('15 Marks) Question 4 An earth drainage ditch may be approximated a trapezoidal channel has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is So = 0.0002 and the Manning roughness coefficient is n = 0.014. Compute a) the depth of uniform flow if Q = 6.01 m/s b) the state of flow (25 Marks) Chapter 8 Question 5 brick channel designed to carry 5.5
The unfinished concrete channel is intended to have a downward slope of 0.002 and sloping sides at 60°
The unfinished concrete channel is intended to have a downward slope of 0.002 and sloping sides at 60° (Figure 1) Part A If the flow is estimated to be 180 m3/s, determine the base dimension b of the channel bottom.
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m...
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m and side slopes 11:1V. The channel bottom slope is so = 0.0002 and the Manning roughness coefficient n = 0.016. Compute a) The depth of uniform flow if Q = 14.3 m3/s b) The state of flow. yo У. b= 8 m
A concrete-lined (smooth) trapezoidal channel with a bottom width of 10 ft and side slope 2 horizontal to 1 vertical has a slope 0,002 and is designed for a discharge of 160 cts. Determine the water depth in the channel,
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is S=0.0002 and the Manning roughness coefficient is n=0.014. Compute: a) the depth of uniform flow if Q = 12.1 m3/s b) the state of the flow. Y Y. b = 6 m Fig. Q2c
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries a discharge of 450 cfs with a normal depth of 3.5 ft. The elevations at the beginning and end of the channel are 685 and 650 ft., respectively. Determine the length of the channel if n = 0.02. #5 [5 points] Water is flowing at a rate of 4.5 m3/s in a trapezoidal channel whose bottom width is 2.4 m and side slopes are...
A channel is constructed of unfinished concrete. It is 10 ft wide, has a slope of 0.005 and carries a flow of 120 cu.ft/s. The flow encounters an obstruction that rises 0.5 ft above the channel bottom. Will a hydraulic jump occur? Justify your answer
('15 Marks) Question 4 An earth drainage ditch may be approximated a trapezoidal channel has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is So = 0.0002 and the Manning roughness coefficient is n = 0.014. Compute a) the depth of uniform flow if Q = 6.01 m/s b) the state of flow (25 Marks) Chapter 8 Question 5 brick channel designed to carry 5.5
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m and side slopes 11:1V. The channel bottom slope is so = 0.0002 and the Manning roughness coefficient n = 0.016. Compute a) The depth of uniform flow if Q = 14.3 m3/s b) The state of flow. yo У. b= 8 m
