Signal Sampling Problem

Hi! Good morning, can someone help me to solve this following sampling excercise?

A digital communication link carries binary-coded words representing samples of an input signal

Xa (t) = 3 cos 600πT + 2 cos 1800 πT

The link is operated at 10000 bits/s and each input sample is quantized into 1024 different voltage levels.

2.Find the Spectrum of Cos(wt)² Using Euler Identy

Thank you so much in Advance!

engineering Electrical-Engineering

Answer 1

Answer #1

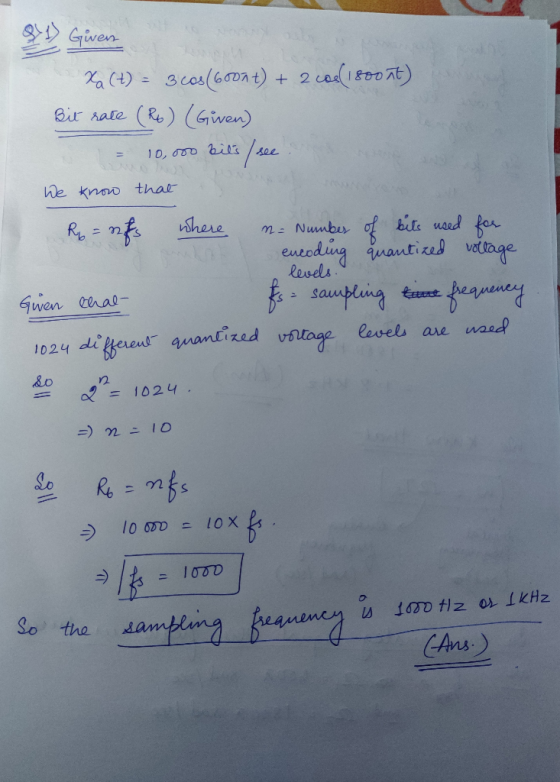

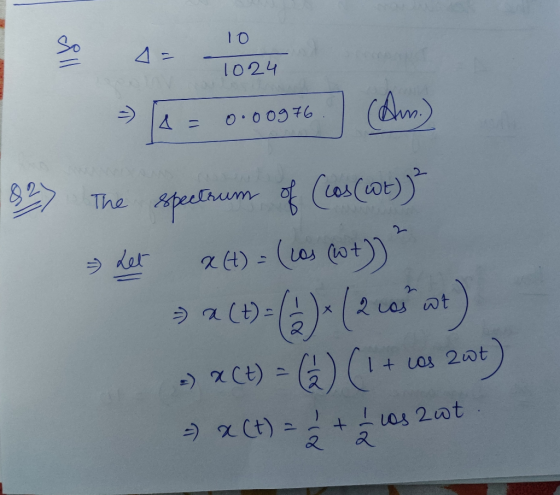

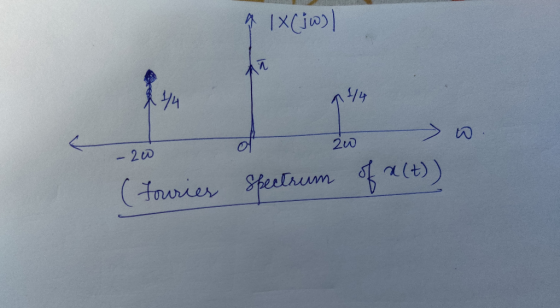

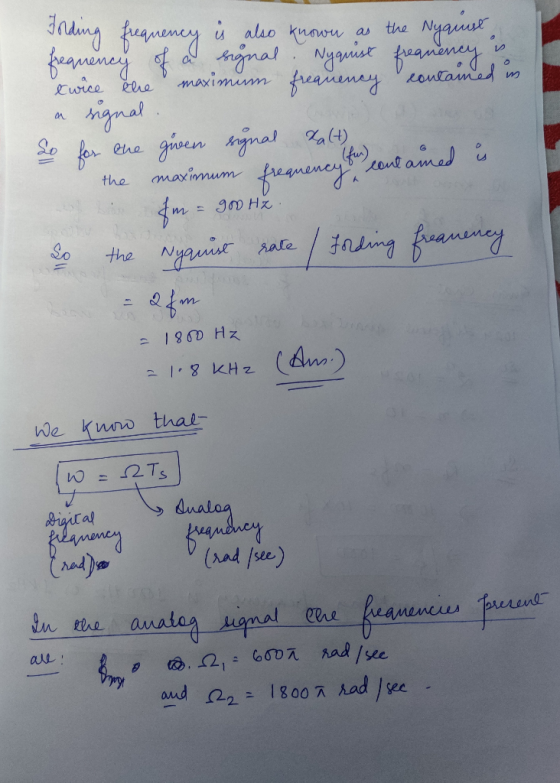

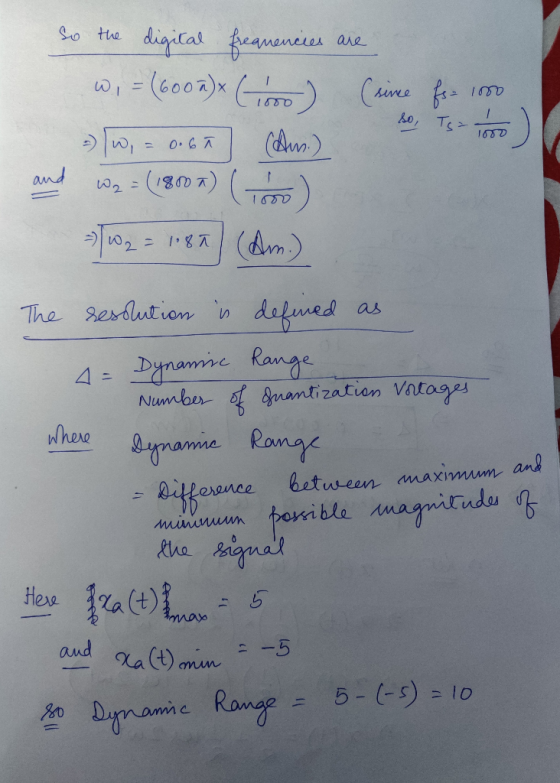

The simple concepts of Fourier Transforms are used here.

Answer 2
