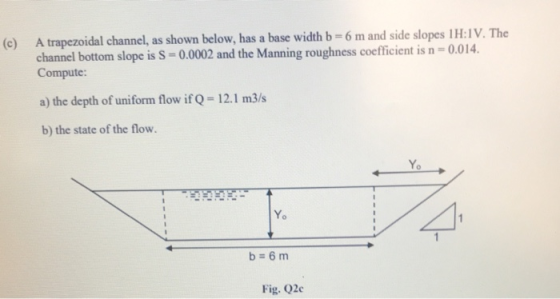

(c) A trapezoidal channel, as shown below, has a base width b = 6 m and...

Question

Question

engineering Civil-Engineering

Answer 1

Similar Homework Help Questions

Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m...

Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m and side slopes 11:1V. The channel bottom slope is so = 0.0002 and the Manning roughness coefficient n = 0.016. Compute a) The depth of uniform flow if Q = 14.3 m3/s b) The state of flow. yo У. b= 8 m
('15 Marks) Question 4 An earth drainage ditch may be approximated a trapezoidal channel has a...

('15 Marks) Question 4 An earth drainage ditch may be approximated a trapezoidal channel has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is So = 0.0002 and the Manning roughness coefficient is n = 0.014. Compute a) the depth of uniform flow if Q = 6.01 m/s b) the state of flow (25 Marks) Chapter 8 Question 5 brick channel designed to carry 5.5
A trapezoidal channel with a bottom width of 8ft and side slopes of 1V:1H is designed...

A trapezoidal channel with a bottom width of 8ft and side slopes of 1V:1H is designed for a discharge of 160cfs. If the channel has a slope of 0.002, what will be the water depth if the Manning n is 0.017?

A trapezoidal channel with bottom width of 10 m and side slopes of 1V:1.5H is carrying a flow of 80 m3/s. The channel bo...

A trapezoidal channel with bottom width of 10 m and side slopes of 1V:1.5H is carrying a flow of 80 m3/s. The channel bottom slope is 0.002 and n = 0.015. A dam is planned that will raise the flow depth to 10 m. Compute the flow depth by using standard step method in the channel 250, 500, and 750 m upstream of the dam.
clear handwriting please. write all steps please. Problem One: A trapezoidal channel of base width 20...

clear handwriting please. write all steps please. Problem One: A trapezoidal channel of base width 20 ft and side slopes of 1.5H:1V is laid on a slope of 0.001, at a discharge of 1000 ft/s. Compute the flow and draw the surface profile upstream from the overfall to the region where the depth is 10 percent lower than uniform. Assume a manning n- 0.025 and that critical flow occurs at the overfall. Classify the profile.
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries...

#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries a discharge of 450 cfs with a normal depth of 3.5 ft. The elevations at the beginning and end of the channel are 685 and 650 ft., respectively. Determine the length of the channel if n = 0.02. #5 [5 points] Water is flowing at a rate of 4.5 m3/s in a trapezoidal channel whose bottom width is 2.4 m and side slopes are...

A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio...

A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio of 3:1. The Manning’s n of the channel is 0.025, and it is laid on a slope of 0.001. If the water depth is 2 m at the downstream end, write and submit an R script to compute the water surface profile for a discharge of 30 m3 /s. Also submit a plot of the water profile in elevation (m) for 1000 m channel...
A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174,...

A trapezoidal channel made of unfinished concrete n = 0.014 has a bottom slope of 0.0174, base width of 5 m, and a side slope of 1:1. For a flow rate of 25 m3 /s, determine the normal depth and the state of the flow. Use Fr = v/(gD)0.5, where D is the hydraulic mean depth. (10 Marks)
A grouted-riprap, trapezoidal channel (n=0.025) with a bottom width of 4 meters and side slopes of...

A grouted-riprap, trapezoidal channel (n=0.025) with a bottom width of 4 meters and side slopes of m=1 carries a discharge 12.5 m3/s on a 0.001 slope. a) Find depth of delta(L) using the standard step method b) Find delta(L) where y=yn (1.66m) using direct step method

Question 6 A concrete-lined trapezoidal channel with uniform flow has a normal depth of 1.5 m. The base width is 4 m and the side slopes are equal at 1 vertical to 2 horizontal. Mannin‘s n-0015....

Question 6 A concrete-lined trapezoidal channel with uniform flow has a normal depth of 1.5 m. The base width is 4 m and the side slopes are equal at 1 vertical to 2 horizontal. Mannin‘s n-0015. The bed slope 0.001 Compute the mean velocity and discharge. If the above channel were to be designed for flooding, it may have a section like in Figure below 8 m 8 m 4 m When the flow goes over the top of the...
