Question

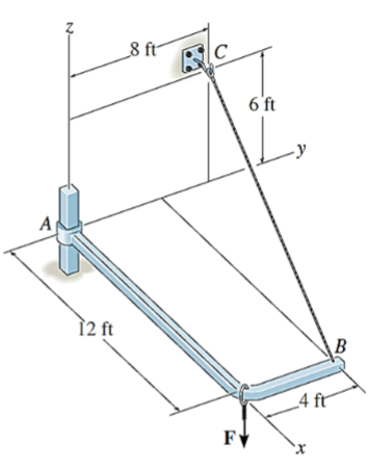

The member AB is supported at B by a cable and at A by a smooth fixed square rod which fits loosely through the square hole of the collar. If F= {20i - 40j - 75k} lb, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at Aare Ay, Ax, Mx, My, and Mz).

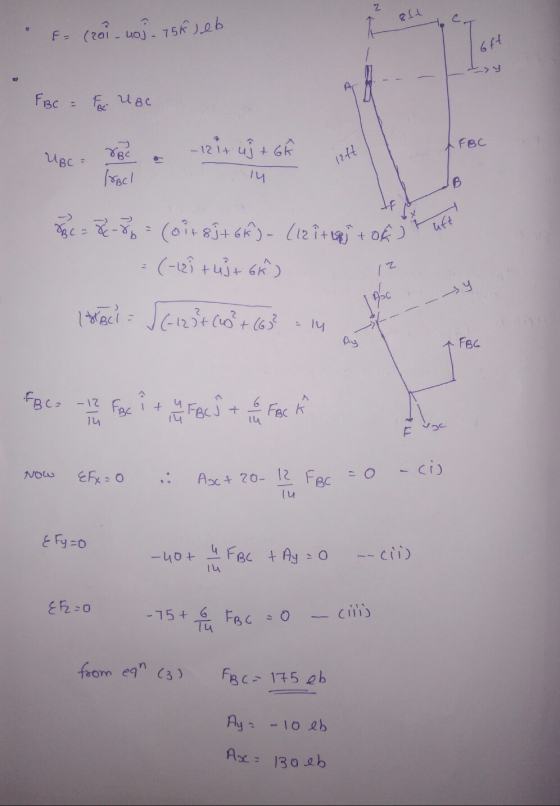

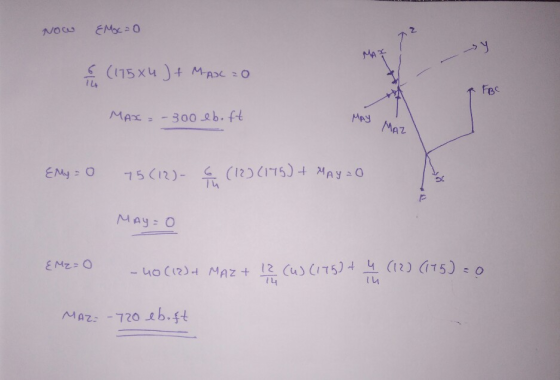

Answer 1
