A trapezoidal channel with bottom width of 10 m and side slopes of 1V:1.5H is carrying a flow of 80 m3/s. The channel bo...
A trapezoidal channel with bottom width of 10 m and side slopes of 1V:1.5H is carrying a flow of 80 m3/s. The channel bottom slope is 0.002 and n = 0.015. A dam is planned that will raise the flow depth to 10 m. Compute the flow depth by using standard step method in the channel 250, 500, and 750 m upstream of the dam.
Homework Answers

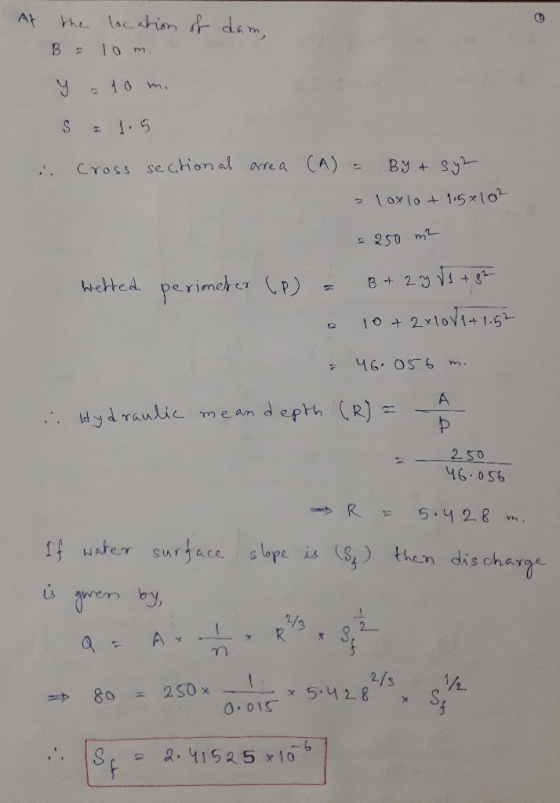

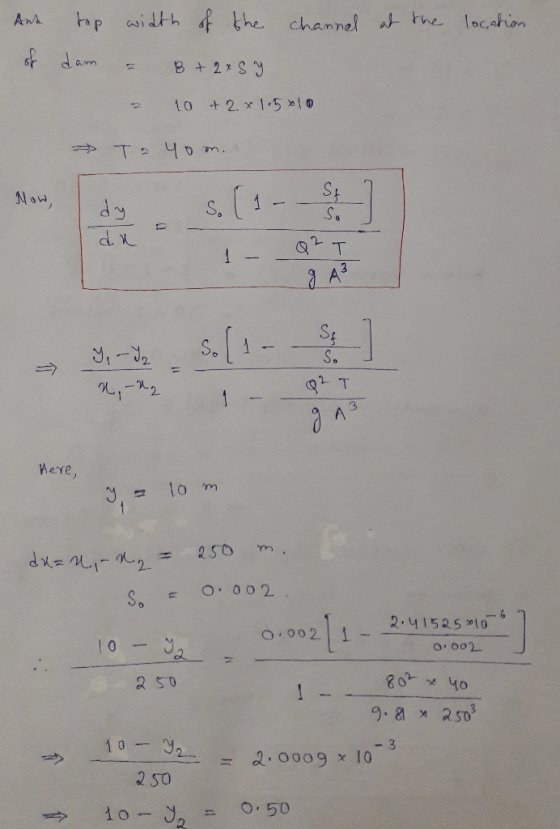

![Cross sectional area CA)By 3y1 e+29 wetted perimeter (P) Hyd rauie me an depth (R] 2 46.0 56 ter sMr ce slope is ) then dis c](http://img.homeworklib.com/images/84a81b41-3343-42f8-8385-c724ad48d239.png?x-oss-process=image/resize,w_560)

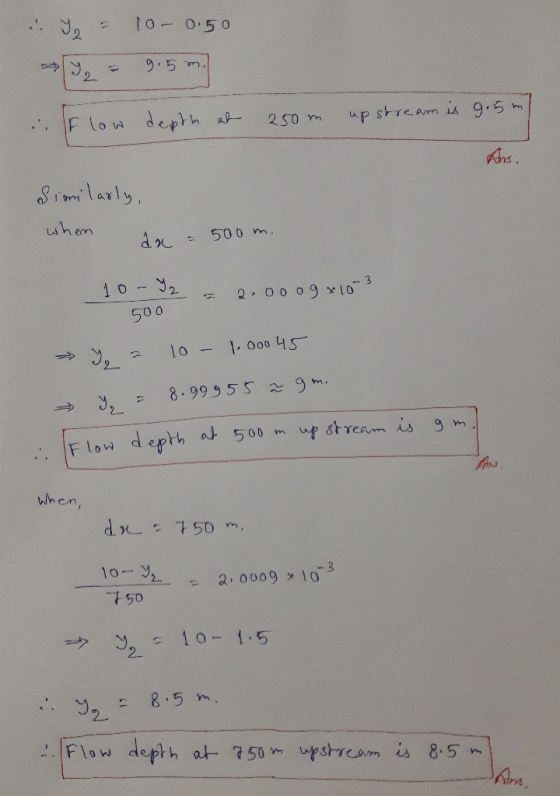

Add Answer to:
A trapezoidal channel with bottom width of 10 m and side slopes of 1V:1.5H is carrying a flow of 80 m3/s. The channel bo...
A trapezoidal channel with a bottom width of 8ft and side slopes of 1V:1H is designed...
A trapezoidal channel with a bottom width of 8ft and side slopes of 1V:1H is designed for a discharge of 160cfs. If the channel has a slope of 0.002, what will be the water depth if the Manning n is 0.017?
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m...
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m and side slopes 11:1V. The channel bottom slope is so = 0.0002 and the Manning roughness coefficient n = 0.016. Compute a) The depth of uniform flow if Q = 14.3 m3/s b) The state of flow. yo У. b= 8 m
A grouted-riprap, trapezoidal channel (n=0.025) with a bottom width of 4 meters and side slopes of...
A grouted-riprap, trapezoidal channel (n=0.025) with a bottom width of 4 meters and side slopes of m=1 carries a discharge 12.5 m3/s on a 0.001 slope. a) Find depth of delta(L) using the standard step method b) Find delta(L) where y=yn (1.66m) using direct step method
A trapezoidal channel has a bottom width 10 ft and side slope of 2H:1V. It carries...
A trapezoidal channel has a bottom width 10 ft and side slope of 2H:1V. It carries a discharge of 250 cfs at a water depth of 4.8ft. The channel is to pass under a highway and a culvert is proposed for a smooth transition from the channel to the culvert. You are asked to design this transition under the following design criteria: First of all, it is important to keep in mind that the culvert shall not act as a...
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and...
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is S=0.0002 and the Manning roughness coefficient is n=0.014. Compute: a) the depth of uniform flow if Q = 12.1 m3/s b) the state of the flow. Y Y. b = 6 m Fig. Q2c
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries...
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries a discharge of 450 cfs with a normal depth of 3.5 ft. The elevations at the beginning and end of the channel are 685 and 650 ft., respectively. Determine the length of the channel if n = 0.02. #5 [5 points] Water is flowing at a rate of 4.5 m3/s in a trapezoidal channel whose bottom width is 2.4 m and side slopes are...
clear handwriting please. write all steps please. Problem One: A trapezoidal channel of base width 20...
clear handwriting please.
write all steps please.
Problem One: A trapezoidal channel of base width 20 ft and side slopes of 1.5H:1V is laid on a slope of 0.001, at a discharge of 1000 ft/s. Compute the flow and draw the surface profile upstream from the overfall to the region where the depth is 10 percent lower than uniform. Assume a manning n- 0.025 and that critical flow occurs at the overfall. Classify the profile.
A trapezoidal channel has a side slope of 1:1 and a bed width of 6.0 m....
A trapezoidal channel has a side slope of 1:1 and a bed width of 6.0 m. A hydraulic jump with a height of 0.5 m (i.e. the difference between water surface elevation upstream and downstream of the jump) is encountered in the channel. If the channel has a discharge of 10 m3/s, determine the critical depth in the channel. Plot the momentum curve and determine the flow depth immediately upstream and downstream of the jump.
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio...
A trapezoidal channel has a bottom width, b, of 10.0 m and a side slope ratio of 3:1. The Manning’s n of the channel is 0.025, and it is laid on a slope of 0.001. If the water depth is 2 m at the downstream end, write and submit an R script to compute the water surface profile for a discharge of 30 m3 /s. Also submit a plot of the water profile in elevation (m) for 1000 m channel...
What is the average velocity in a PCC lined trapezoidal channel with a bottom width of...
What is the average velocity in a PCC lined trapezoidal channel with a bottom width of 10 m, 1:1 side slopes, a channel slope of 3% when it is flowing at a depth of 2m? The n-value for PCC is 0.013.
Q1. For a uniform flow, a trapezoidal channel has a base width b = 8 m and side slopes 11:1V. The channel bottom slope is so = 0.0002 and the Manning roughness coefficient n = 0.016. Compute a) The depth of uniform flow if Q = 14.3 m3/s b) The state of flow. yo У. b= 8 m
A trapezoidal channel has a bottom width 10 ft and side slope of 2H:1V. It carries a discharge of 250 cfs at a water depth of 4.8ft. The channel is to pass under a highway and a culvert is proposed for a smooth transition from the channel to the culvert. You are asked to design this transition under the following design criteria: First of all, it is important to keep in mind that the culvert shall not act as a...
(c) A trapezoidal channel, as shown below, has a base width b = 6 m and side slopes 1H:1V. The channel bottom slope is S=0.0002 and the Manning roughness coefficient is n=0.014. Compute: a) the depth of uniform flow if Q = 12.1 m3/s b) the state of the flow. Y Y. b = 6 m Fig. Q2c
#4 [5 points] A trapezoidal channel of bottom width 25 ft and side slope 1:2.5 carries a discharge of 450 cfs with a normal depth of 3.5 ft. The elevations at the beginning and end of the channel are 685 and 650 ft., respectively. Determine the length of the channel if n = 0.02. #5 [5 points] Water is flowing at a rate of 4.5 m3/s in a trapezoidal channel whose bottom width is 2.4 m and side slopes are...
clear handwriting please.
write all steps please.
Problem One: A trapezoidal channel of base width 20 ft and side slopes of 1.5H:1V is laid on a slope of 0.001, at a discharge of 1000 ft/s. Compute the flow and draw the surface profile upstream from the overfall to the region where the depth is 10 percent lower than uniform. Assume a manning n- 0.025 and that critical flow occurs at the overfall. Classify the profile.
What is the average velocity in a PCC lined trapezoidal channel with a bottom width of 10 m, 1:1 side slopes, a channel slope of 3% when it is flowing at a depth of 2m? The n-value for PCC is 0.013.
