If the beam is subjected to a bending moment of M = 50 kN-m, determine the maximum bending stress in the beam.

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

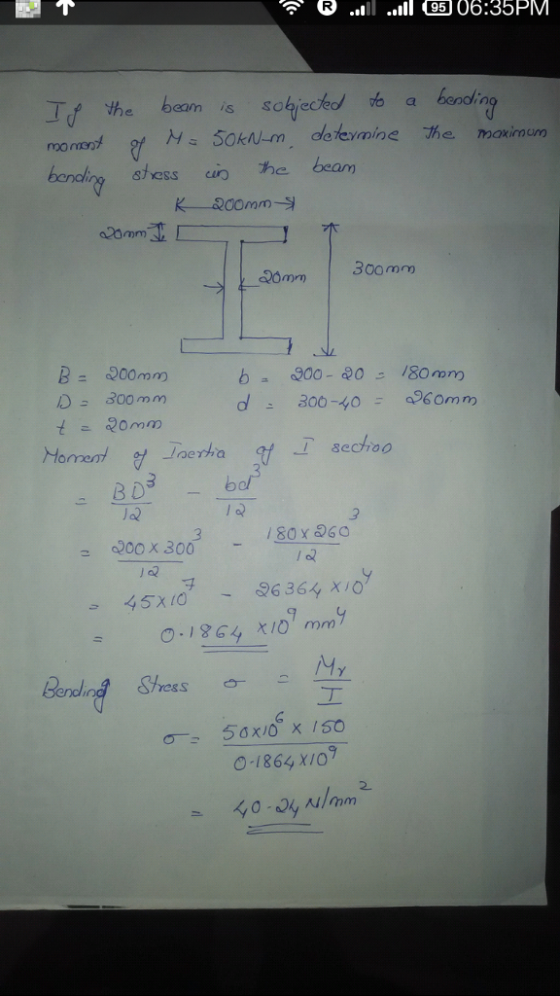

In the figure the total depth is not clear

whether 300mm is total depth or inner depth

So i have taken D = 300mm

If d= 300mm

Then take D = 340mm

make corresponding changes in calculating I

r= 170mm
