The beam shown is subjected to a constant Bending Moment M = 2109 Kg * m....
The beam shown is subjected to a constant Bending Moment M = 2109 Kg * m. Determine the maximum bending stress of the beam.

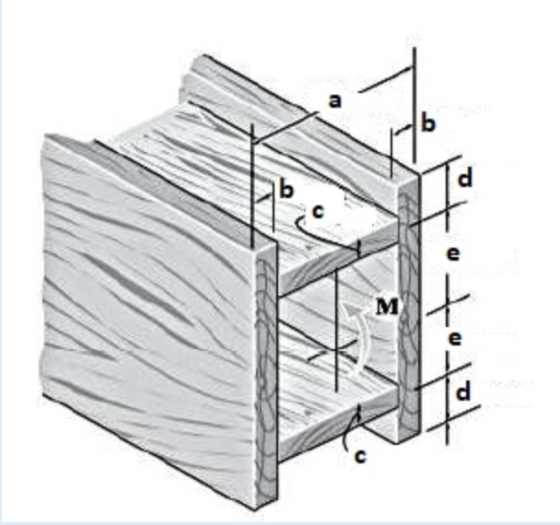

The dimensions of the cross section shown are a = 211 mm, b = 50 mm, c = 31 mm, d = 63 mm and e = 128 mm
Determine the maximum stress in Kg/cm^2 due to the bending moment, use 4 decimal places in your answer.
Homework Answers

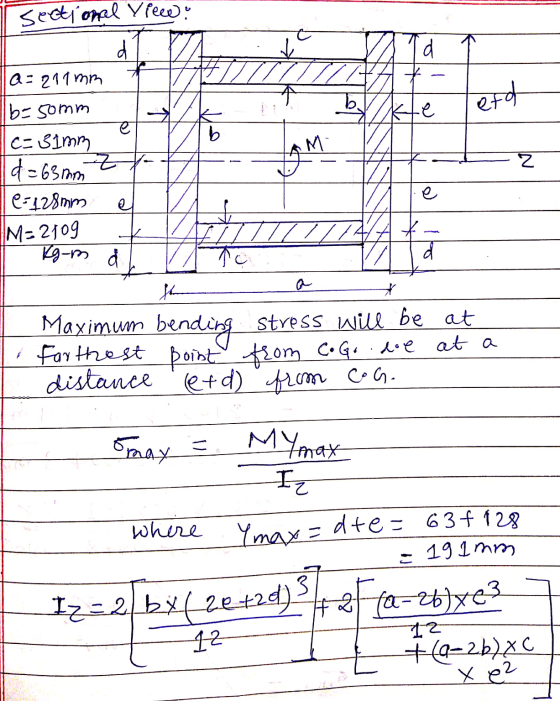

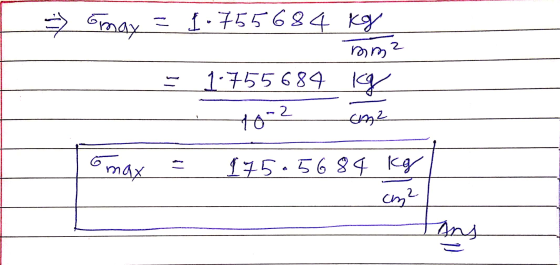

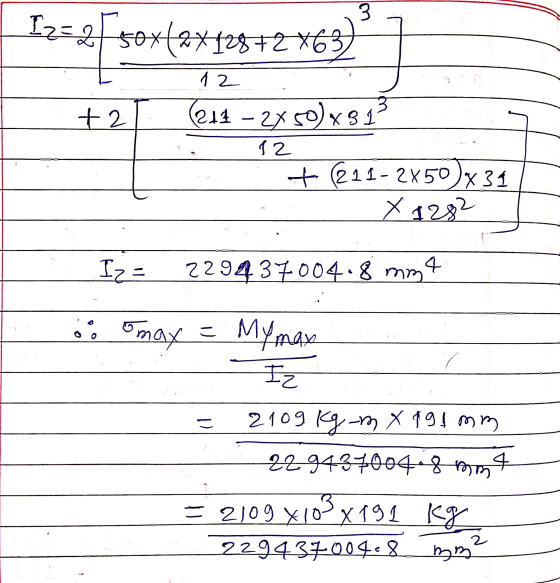

![Г Така sor (21812 x63) — 12 . +2 Г. №11 – 2x cox81° . 42 - 211 - 2Х50 x 34 ] - Х 128 | I = 22 94 37o04.8 mm * o, Smлу = му та](http://img.homeworklib.com/questions/960aa510-c557-11eb-9907-514456166e26.png?x-oss-process=image/resize,w_560)
Add Answer to:
The beam shown is subjected to a constant Bending Moment M =
2109 Kg * m....
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine...
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
A beam whose cross-section is shown in the figure is subjected to a bending moment M...
A beam whose cross-section is shown in the figure is subjected to a bending moment M inclined at 0 = 70° from the z axis. a) Locate the orientation of the neutral axis B and draw this axis on the figure b) Calculate the maximum flexural tensile stress Omax,T and the maximum flexural compressive stress Omax.c in the beam and indicate at which points in the section these occur. M= 2 Nm D e Z 20 mm A B 60...
A beam having the cross-section shown below is subjected to a bending moment of 1500 Nm...
A beam having the cross-section shown below is subjected to a bending moment of 1500 Nm in x-axis. Calculate the maximum direct stress due to bending and state the point at which it acts. 40 mm 80 mm у B 8 mm C IX x 80 mm ΕΙ 8 mm
If the beam is subjected to a bending moment of M = 50 kN-m, determine the maximum bending stress in the beam.
If the beam is subjected to a bending moment of M = 50 kN-m, determine the maximum bending stress in the beam.
If the beam is subjected to a moment of M = 100 kn-m, determine the bending stress at points A, B, and C.
If the beam is subjected to a moment of M = 100 kn-m, determine the bending stress at points A, B, and C. Sketch the bending stress distribution on the cross Section. If the beam is made of a material having an allowable tensile and compressive stress of σallow(T) = 125 MPa and σallow(C) = 150 MPa, respectively, determine the maximum moment M that can be applied to the beam.
PLEASE PRINT Question Four The beam has a cross section shown below and is subjected to...
PLEASE PRINT
Question Four The beam has a cross section shown below and is subjected to a 1 kN load as shown. The beam AB has a length of 3 m. a) Draw the shear force and bending moment diagrams. b) Determine the maximum bending stress. c) Where is the location of the maximum stress in b) above? 30 mm 30 mm 30 mm 50 mm t 40 mm 50 m 40mm
If the beam is subjected to an internal bending moment of 36.8 kip-ft, determine the normal...
If the beam is subjected to an internal bending moment of 36.8 kip-ft, determine the normal stress (in ksi) due to bending developed at point B on the cross-section. Note: Your answer should be in requested units and be to 2 decimal places. 12" M 1.5" 1.5" C B 6" 6
The cross section of a beam shown below is subjected to a bending moment of 8,000...
The cross section of a beam shown below is subjected to a bending moment of 8,000 lb-in, which causes compression at top point A and tension at bottom point B. Find the maximum bending stress. Show the details of your work. 12 in
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
If the beam is subjected to a positive bending moment of M = 100 kN-m, determine the maximum and minimum bending stress. Also determine the shear stress at point, A which is 50 mm above from the bottom. The cross-section of the beam is I-shaped and shown in the figure. 300 mm 30 mm 300 mm . 50 mm 30 mm
A beam whose cross-section is shown in the figure is subjected to a bending moment M inclined at 0 = 70° from the z axis. a) Locate the orientation of the neutral axis B and draw this axis on the figure b) Calculate the maximum flexural tensile stress Omax,T and the maximum flexural compressive stress Omax.c in the beam and indicate at which points in the section these occur. M= 2 Nm D e Z 20 mm A B 60...
A beam having the cross-section shown below is subjected to a bending moment of 1500 Nm in x-axis. Calculate the maximum direct stress due to bending and state the point at which it acts. 40 mm 80 mm у B 8 mm C IX x 80 mm ΕΙ 8 mm
PLEASE PRINT
Question Four The beam has a cross section shown below and is subjected to a 1 kN load as shown. The beam AB has a length of 3 m. a) Draw the shear force and bending moment diagrams. b) Determine the maximum bending stress. c) Where is the location of the maximum stress in b) above? 30 mm 30 mm 30 mm 50 mm t 40 mm 50 m 40mm
If the beam is subjected to an internal bending moment of 36.8 kip-ft, determine the normal stress (in ksi) due to bending developed at point B on the cross-section. Note: Your answer should be in requested units and be to 2 decimal places. 12" M 1.5" 1.5" C B 6" 6
The cross section of a beam shown below is subjected to a bending moment of 8,000 lb-in, which causes compression at top point A and tension at bottom point B. Find the maximum bending stress. Show the details of your work. 12 in
