Part 1: Design a Moore state machine that recognizes both a 1012 and a 0102 input...
Part 1: Design a Moore state machine that recognizes both a 1012
and a 0102 input pattern. This state machine has a 2-
bit wide z output. If the 1012 pattern is detected, the state
machine should output 102. If the 0102 pattern is
detected, the state machine should output 012. In the initial
state, the output should be 002 and in all other

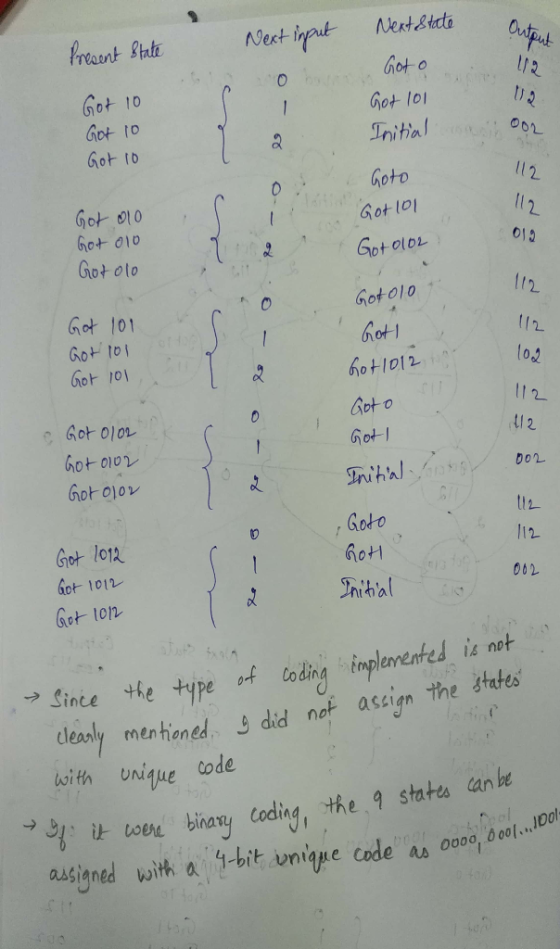

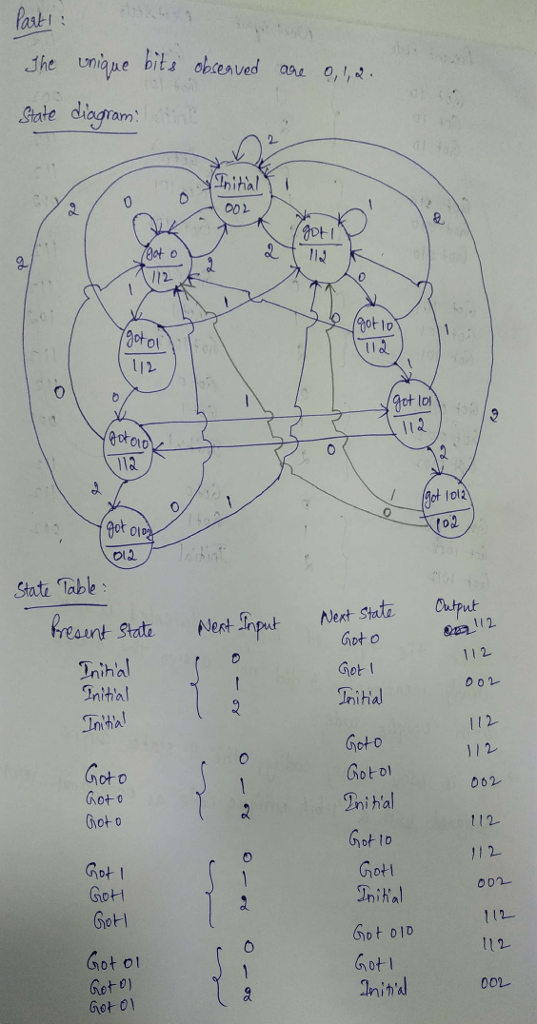

states, the output should be 112. Draw the state diagram and the
state table.
Part 2: Repeat the previous question using a Mealy Design state machine. Draw the state diagram and the state table.
Homework Answers
