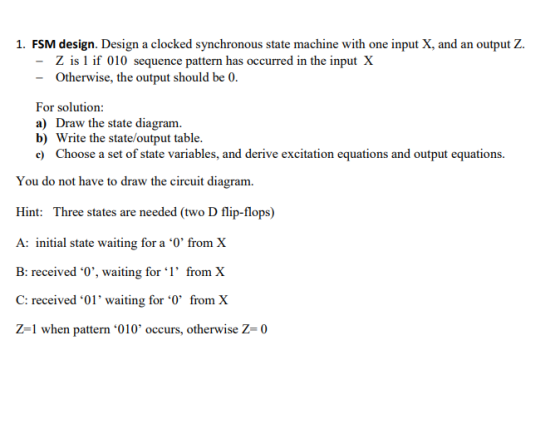

1. FSM design. Design a clocked synchronous state machine with one input X, and an output...

Question

Question

engineering Electrical-Engineering

Answer 1

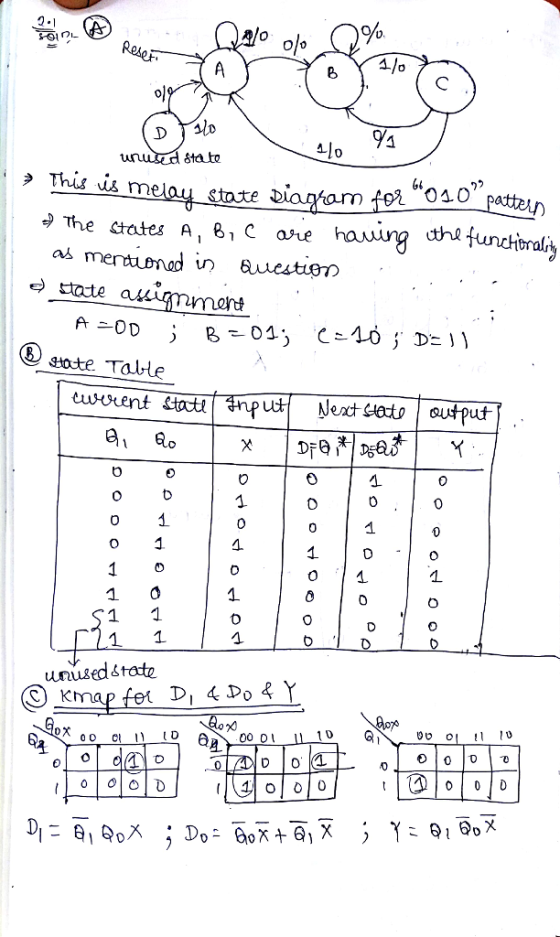

Answer #1

Answer 2
