Design a Moore FSM to detect an input sequence of X: 010, the output will be...
Design a Moore FSM to detect an input sequence of X: 010, the output will be 1. input: 0001010100101.. output: 0000101010010.. a. Draw the state diagram of your design [5 marks] b. Using the binary number as the state assignment, deduce the next state equation of your design. [10 marks] c. Deduce the logic equations of the next state decoder and output decoder with T flop flip as storage elements. [10 marks]
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
Design a Moore FSM to detect an input sequence of X: 010, the
output will be...
Answer both parts please 3. Implement a Mealy FSM to detect the "1100110” sequence with overlap....
Answer both parts please
3. Implement a Mealy FSM to detect the "1100110” sequence with overlap. The output Y should be a 'l' only when the sequence has been detected and 'O' otherwise. Obtain the state transition diagram, state transition table, state assignment table, output table, next-state equations, and output equations for this FSM. Use SR flip-flops for state storage. Simplify the equations as much as possible using a K-map. Use don't cares as necessary. 4. Implement the sequence detector...
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an ...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Design a 4-bit serial bit sequence detector. The input to your state detector is called DIN...
Design a 4-bit serial bit sequence detector. The input to your state detector is called DIN and the output is called FOUND. Your detector will assert FOUND anytime there is a 4-bit sequence of "0101". For all other input sequuences the output is not asserted. (a) (b) Provide the state diagram for this FSM. Encode your states using binary encoding. How many D-Flip-Flops does it take to implement the state memory for this FSM? (c) Provide the state transition table...
Design a 3-bit down counter FSM with no inputs and three outputs. Do this using a...
Design a 3-bit down counter FSM with no inputs and three outputs. Do this using a T flip flop. a. Draw a state diagram and the corresponding state table. b. Derive the equations for output functions and flip-flop input functions c. Draw the logic circuit diagram
1. FSM design. Design a clocked synchronous state machine with one input X, and an output...
1. FSM design. Design a clocked synchronous state machine with one input X, and an output Z. Z is 1 if 010 sequence pattern has occurred in the input X Otherwise, the output should be 0 For solution: a) Draw the state diagram. b) Write the state/output table. xcitation eqations and output equatio You do not have to draw the circuit diagram. Hint: Three states are needed (two D flip-flops) A: initial state waiting for a 0' from X B:...
2) (10 points) A moore FSM has a single infinitely long binary string r as input...
2) (10 points) A moore FSM has a single infinitely long binary string r as input and a single output. The output is a logic 1 if there are two consecutive ls or two consecutive Os received. For example, input = 0110001 output = 0010110 Design the FSM. Use full encoding. Construct a timing diagram for the input sequence shown above. Be sure and do an implication table check
**Please use Moore method** Design and draw the state-graph of an FSM that detects the input sequ...
**Please use Moore method** Design and draw the state-graph of an FSM that detects the input sequence ‘11011’ including overlaps. The sequence appears at the input from left to right. Suggest two different designs and compare them by listing the advantage and disadvantage of each. For both designs provide a state diagram, state-table, K-Maps, equations, and the circuit.
ANSWER ONLY QUESTION #3!!!!! 2) (10 points) A moore FSM has a single infinitely long binary string r as input and a single output. The output is a logic 1 if the input changes from 0 to 1 or 1 to 0...
ANSWER ONLY QUESTION #3!!!!!
2) (10 points) A moore FSM has a single infinitely long binary string r as input and a single output. The output is a logic 1 if the input changes from 0 to 1 or 1 to 0 For example, output is r-00101110 001110001 Design the FSM. Use full encoding. Construct a timing diagram for the input sequence shown above. Be sure and do an implication table check 3) (5 points) Show the schematic of a...
Design and implement a MEALY finite state machine that would detect a sequence 0110 in the...
Design and implement a MEALY finite state machine that would detect a sequence 0110 in the input stream. Overlapping sequences are allowed. A) draw state diagram You would need no more than 4 states to implement the logic B) tabulate the state transition table C) show the implementation of the FSM using D-flip-flops
4) Design FSMs that will detect the following sequence (including overlapping sequences). When the sequence is...
4) Design FSMs that will detect the following sequence (including overlapping sequences). When the sequence is detected, a single output "z" is set to 1. Your design should include a state transition diagram and a state transition truth table (you do NOT need to design the circuit schematic, just the transition diagram and truth table). Sequence = 110111 a. Create a Moore FSM b. Create a Mealy FSM
Answer both parts please
3. Implement a Mealy FSM to detect the "1100110” sequence with overlap. The output Y should be a 'l' only when the sequence has been detected and 'O' otherwise. Obtain the state transition diagram, state transition table, state assignment table, output table, next-state equations, and output equations for this FSM. Use SR flip-flops for state storage. Simplify the equations as much as possible using a K-map. Use don't cares as necessary. 4. Implement the sequence detector...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Design a 4-bit serial bit sequence detector. The input to your state detector is called DIN and the output is called FOUND. Your detector will assert FOUND anytime there is a 4-bit sequence of "0101". For all other input sequuences the output is not asserted. (a) (b) Provide the state diagram for this FSM. Encode your states using binary encoding. How many D-Flip-Flops does it take to implement the state memory for this FSM? (c) Provide the state transition table...
1. FSM design. Design a clocked synchronous state machine with one input X, and an output Z. Z is 1 if 010 sequence pattern has occurred in the input X Otherwise, the output should be 0 For solution: a) Draw the state diagram. b) Write the state/output table. xcitation eqations and output equatio You do not have to draw the circuit diagram. Hint: Three states are needed (two D flip-flops) A: initial state waiting for a 0' from X B:...

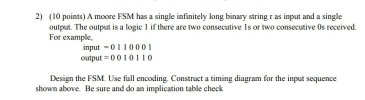

2) (10 points) A moore FSM has a single infinitely long binary string r as input and a single output. The output is a logic 1 if there are two consecutive ls or two consecutive Os received. For example, input = 0110001 output = 0010110 Design the FSM. Use full encoding. Construct a timing diagram for the input sequence shown above. Be sure and do an implication table check
ANSWER ONLY QUESTION #3!!!!!
2) (10 points) A moore FSM has a single infinitely long binary string r as input and a single output. The output is a logic 1 if the input changes from 0 to 1 or 1 to 0 For example, output is r-00101110 001110001 Design the FSM. Use full encoding. Construct a timing diagram for the input sequence shown above. Be sure and do an implication table check 3) (5 points) Show the schematic of a...
4) Design FSMs that will detect the following sequence (including overlapping sequences). When the sequence is detected, a single output "z" is set to 1. Your design should include a state transition diagram and a state transition truth table (you do NOT need to design the circuit schematic, just the transition diagram and truth table). Sequence = 110111 a. Create a Moore FSM b. Create a Mealy FSM
