Rigid bar BCD is supported by a pin at C and aluminum rod (1)

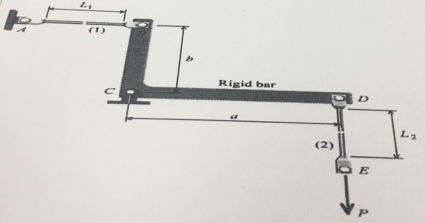

Rigid bar BCD is supported by a pin at C and aluminum rod (1). A concentrated load P is applied to the lower end of the aluminum rod (2) which is attached to the rigid bar at D. The cross sectional area of each rod is A»0.20 in2 and the elastic modulus of the aluminum material is E=9200 ksi. The coefficient of thermal expansion 12.5 x 10-6/°F. After the load P is applied and the structure has been CoOLED by 25 °F, the strain gauge in rod 1 measures 1200 μe in tension. L1=54 Inches, L2=120 inches, a=31 inches, b=20 inches.
a) Find the magnitude of load P

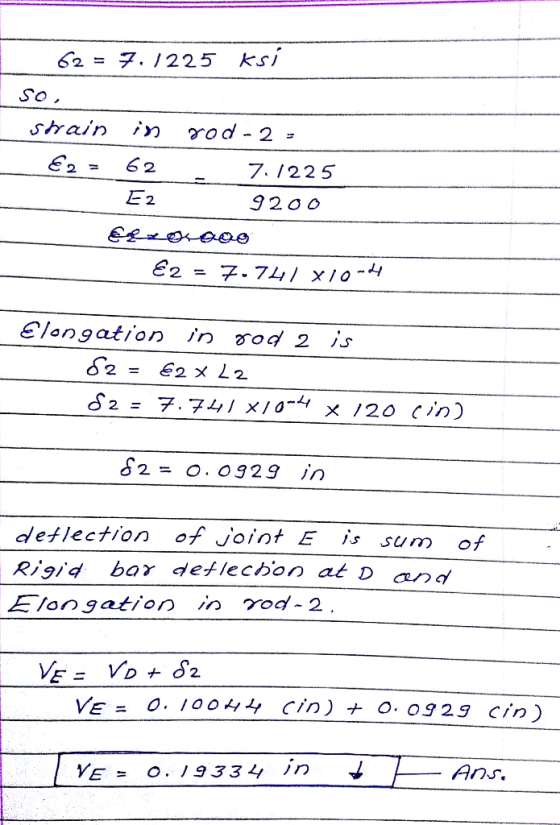

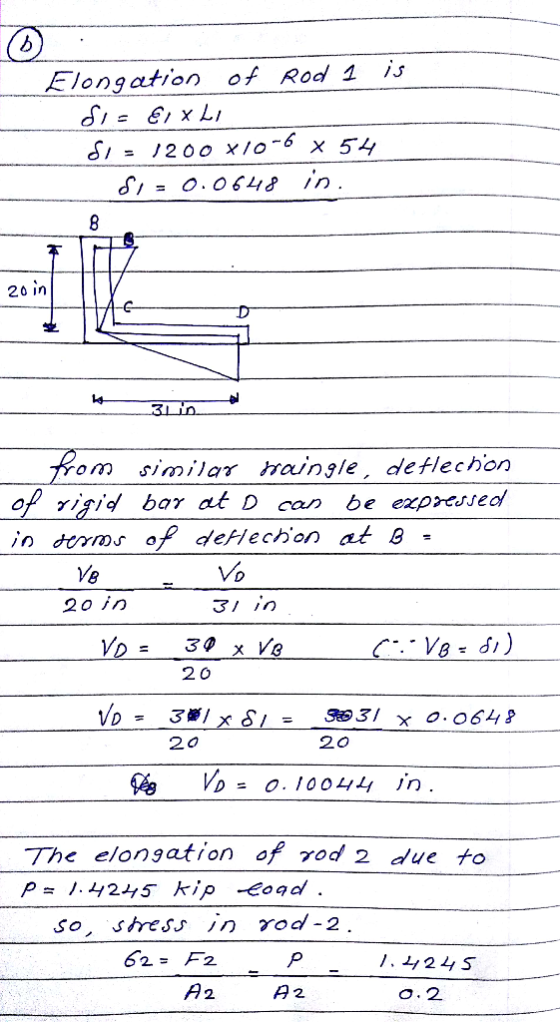

b) Deflection of point E relative to its initial position.
Homework Answers
