Homework Answers

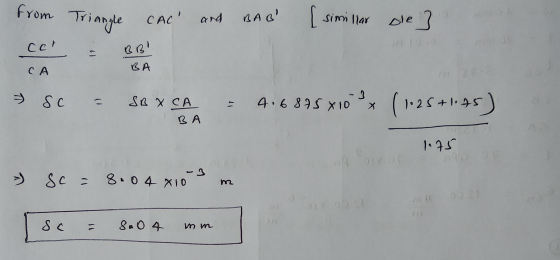

![from Triangle CAC and BAG [simillar ole] cet & BB CABA sc = SOXCA = 4.6875x10x (1.25 +145) BA 1.75 - so = 8:04 x103 m Isc -](http://img.homeworklib.com/questions/faf5b070-3124-11eb-a824-fbd06ea49333.png?x-oss-process=image/resize,w_560)
Add Answer to:

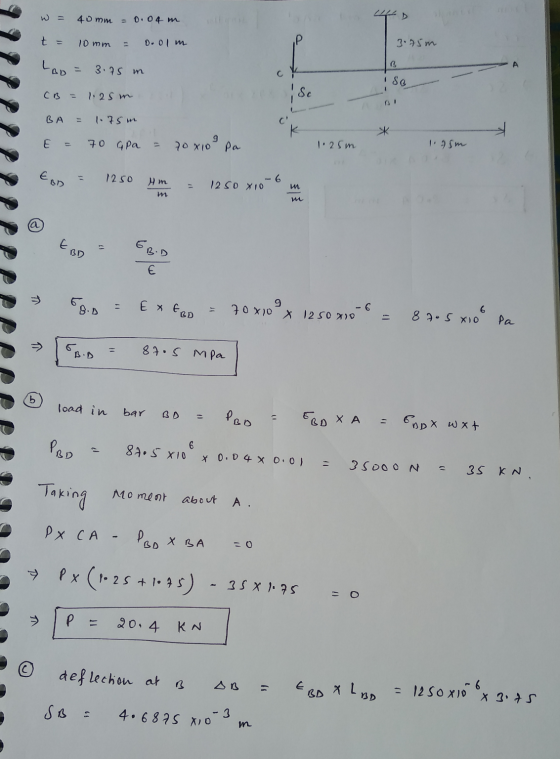

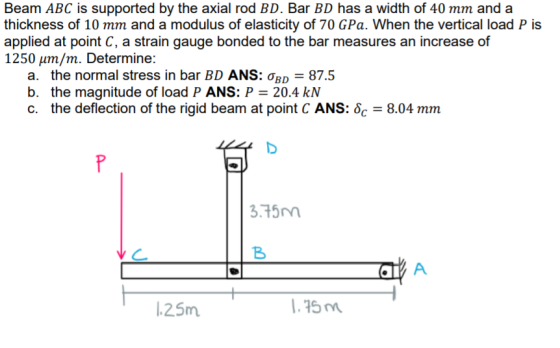

Beam ABC is supported by the axial rod BD. Bar BD has a width of 40...
The rigid bar shown is supported by axial bar (1) and by a pin connection at C. Axial bar (1) has...
The rigid bar shown is supported by axial bar (1) and by a pin
connection at C. Axial bar (1) has a cross-sectional area
of A1 = 250 mm2, an elastic modulus
of E = 200 GPa, and a coefficient of thermal expansion of
α= 11.3 × 10-6/°C. The pin at C has a diameter
of 40 mm. After load P has been applied and the
temperature of the entire assembly has been increased by 10°C, the
total strain in...
The device shown in Fig. 2 aa cons its of a horoontฝ beam Aac wpported by two vertical bars BD and CE Bar CE is pinn...
The device shown in Fig. 2 aa cons its of a horoontฝ beam Aac wpported by two vertical bars BD and CE Bar CE is pinned at both ends but bar BO is fixed to the foundation at its lower end The distance from A to 8 is 450 mm aned from 8 to C is 225 mm. Dars BD and CE have lengths of 480 mm and 600 m respectively, and their c ros-sectional areas are 1020 mm and...
The rigid beam is supported by a pin at A and wires BD and CE. If...
The rigid beam is supported by a pin at A and wires BD and CE. If the load P on the beam causes the end C to be displaced 10 mm downward, determine the normal strain developed in wires CE and BD.
Rigid bar BCD is supported by a pin at C and aluminum rod (1)
Rigid bar BCD is supported by a pin at C and aluminum rod (1). A concentrated load P is applied to the lower end of the aluminum rod (2) which is attached to the rigid bar at D. The cross sectional area of each rod is A»0.20 in2 and the elastic modulus of the aluminum material is E=9200 ksi. The coefficient of thermal expansion 12.5 x 10-6/°F. After the load P is applied and the structure has been CoOLED by...
Question 4 The rigid beam is supported by a pin at A and wires BD and...
Question 4 The rigid beam is supported by a pin at A and wires BD and CE. If the load P on the beam causes the end C to be displaced 8 mm downward, determine the normal strain developed in wires CE and BD.
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
The rigid bar AC is supported by two axial bars (1) and (2). Both axial bars...
The rigid bar AC is supported by two axial bars (1) and (2). Both axial bars are made of bronze [E = 100 GPa; a = 18 x 10-6 mm/mm/°C). The cross-sectional area of bar (1) is A1 = 226 mm- and the cross-sectional area of bar (2) is Az = 362 mm. After load P has been applied and the temperature of the entire assembly has increased by 22°C, the total strain in bar (2) is measured as 1020...
Plz do it right cus it’s really important question connection at C. Axial bar (1) has...
Plz do it right cus it’s really important question
connection at C. Axial bar (1) has a 15. The rigid bar shown is supported by axial bar (1) and by a pin cross-sectional area of A, 350 mm2, an elastic modulus of E 200 thermal expansion of a 12.8 x 10rC. The pin at Chas a diameter of 35 been applied and the temperature of the entire assembly has been strain in bar (1) is measured as 950 ue (elongation)....
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C...
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C as shown in Figure Q1. Member (1) is a 20 mm wide by 9 mm thick rectangular bar made of Steel Alloys (A992). The total strain in bar (1) is measured as 925 ue (925x10°). The pin at C has an ultimate shear strength of ty = 345MPa. Determine: (a) The axial force in member (1). [9 marks] (b) The factor of safety in...
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end. The bars can carry either tension or compressive forces. The rigid beam carries a UDL of I kN/m across BC and a point load of P at D as shown in the figure above. The length of the two bars is 3000 mm. The elastic modulus of both bars is 200 GPa and the...
The rigid bar shown is supported by axial bar (1) and by a pin
connection at C. Axial bar (1) has a cross-sectional area
of A1 = 250 mm2, an elastic modulus
of E = 200 GPa, and a coefficient of thermal expansion of
α= 11.3 × 10-6/°C. The pin at C has a diameter
of 40 mm. After load P has been applied and the
temperature of the entire assembly has been increased by 10°C, the
total strain in...
The device shown in Fig. 2 aa cons its of a horoontฝ beam Aac wpported by two vertical bars BD and CE Bar CE is pinned at both ends but bar BO is fixed to the foundation at its lower end The distance from A to 8 is 450 mm aned from 8 to C is 225 mm. Dars BD and CE have lengths of 480 mm and 600 m respectively, and their c ros-sectional areas are 1020 mm and...
The rigid beam is supported by a pin at A and wires BD and CE. If the load P on the beam causes the end C to be displaced 10 mm downward, determine the normal strain developed in wires CE and BD.
Question 4 The rigid beam is supported by a pin at A and wires BD and CE. If the load P on the beam causes the end C to be displaced 8 mm downward, determine the normal strain developed in wires CE and BD.
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
The rigid bar AC is supported by two axial bars (1) and (2). Both axial bars are made of bronze [E = 100 GPa; a = 18 x 10-6 mm/mm/°C). The cross-sectional area of bar (1) is A1 = 226 mm- and the cross-sectional area of bar (2) is Az = 362 mm. After load P has been applied and the temperature of the entire assembly has increased by 22°C, the total strain in bar (2) is measured as 1020...
Plz do it right cus it’s really important question
connection at C. Axial bar (1) has a 15. The rigid bar shown is supported by axial bar (1) and by a pin cross-sectional area of A, 350 mm2, an elastic modulus of E 200 thermal expansion of a 12.8 x 10rC. The pin at Chas a diameter of 35 been applied and the temperature of the entire assembly has been strain in bar (1) is measured as 950 ue (elongation)....
Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C as shown in Figure Q1. Member (1) is a 20 mm wide by 9 mm thick rectangular bar made of Steel Alloys (A992). The total strain in bar (1) is measured as 925 ue (925x10°). The pin at C has an ultimate shear strength of ty = 345MPa. Determine: (a) The axial force in member (1). [9 marks] (b) The factor of safety in...
