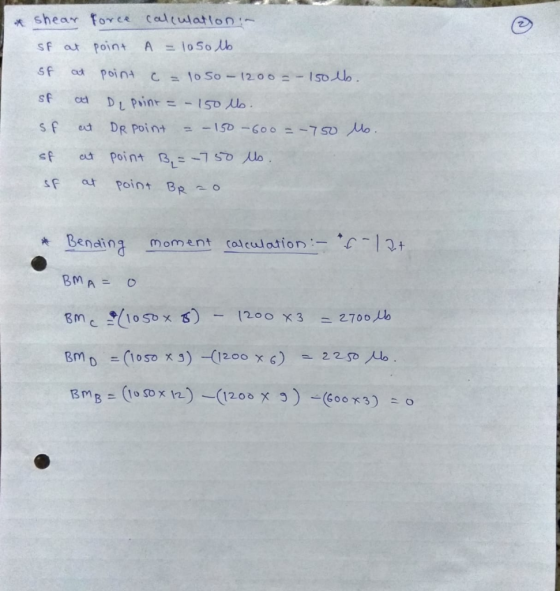

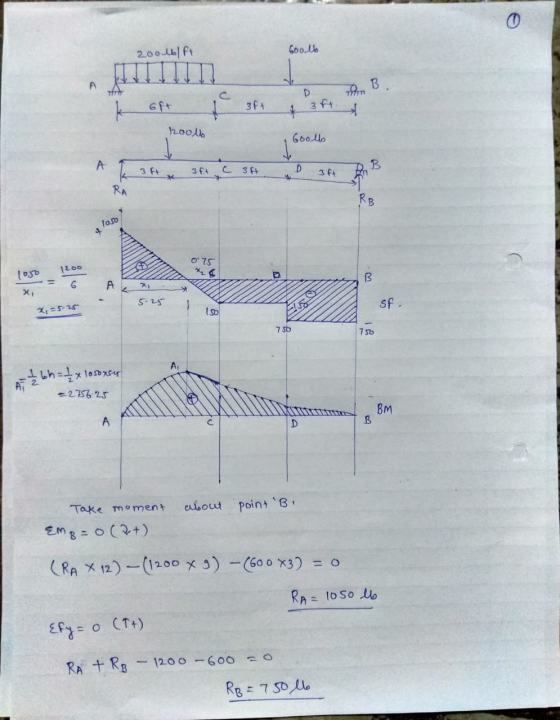

Draw shear and moment diagrams for the beam. Thanks for the help. 600 lb 200 lb/ft...
Draw shear and moment diagrams for the beam.
Thanks for the help.
Homework Answers
Add Answer to:
Draw shear and moment diagrams for the beam.
Thanks for the help.
600 lb 200 lb/ft...
Draw shear and moment diagrams for the beam shown below 600 lb 200 lb/ft AL B...

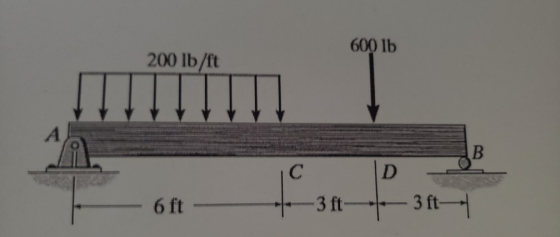

Draw shear and moment diagrams for the beam shown below 600 lb 200 lb/ft AL B — 6 ft — C + D 3ft-*—3ft-
5. Draw the shear and moment diagrams for the beam (Graphical Method). 400 lb/ft 600 lb-ft...
5. Draw the shear and moment diagrams for the beam (Graphical Method). 400 lb/ft 600 lb-ft 15 ft -
draw shear and moment diagrams for the beam 50 lb/ft 200 lb-ft AO B 20 ft...
draw shear and moment diagrams for the beam
50 lb/ft 200 lb-ft AO B 20 ft 10 ft
4. Determine the shear and moment diagrams for the beam 600 lb/ft B2 3 ft 6...
4. Determine the shear and moment diagrams for the beam 600 lb/ft B2 3 ft 6 ft 3 ft
Draw the shear and moment diagrams for the beam 250 lb/ft B 150 lb-ft 150 lb-ft...
Draw the shear and moment diagrams for the beam
250 lb/ft B 150 lb-ft 150 lb-ft 20 ft V, 1b
Use EXCEL program to draw the moment and shear diagrams? 3. 400 Ib 400 lb 200...
Use EXCEL program to draw the moment and shear diagrams? 3. 400 Ib 400 lb 200 lb/t 3 ft -6 ft 3 ft
Use EXCEL program to draw the moment and shear diagrams? 3. 400 Ib 400 lb 200 lb/t 3 ft -6 ft 3 ft
1000 lb 2000 lb Draw the shear and moment for the given beam. 400 lb/ft 200...
1000 lb 2000 lb Draw the shear and moment for the given beam. 400 lb/ft 200 lb/ft Ksht 5 ft 10 ft 10 ft Ri
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below....
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb х A 10 ft B 6 ft 10 ft
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below....
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb Х A B 10 ft 6 ft 10 ft
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below....
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb 10 ft 6 ft 10 ft B
Draw shear and moment diagrams for the beam shown below 600 lb 200 lb/ft AL B — 6 ft — C + D 3ft-*—3ft-
5. Draw the shear and moment diagrams for the beam (Graphical Method). 400 lb/ft 600 lb-ft 15 ft -
draw shear and moment diagrams for the beam
50 lb/ft 200 lb-ft AO B 20 ft 10 ft
4. Determine the shear and moment diagrams for the beam 600 lb/ft B2 3 ft 6 ft 3 ft
Draw the shear and moment diagrams for the beam
250 lb/ft B 150 lb-ft 150 lb-ft 20 ft V, 1b
Use EXCEL program to draw the moment and shear diagrams? 3. 400 Ib 400 lb 200 lb/t 3 ft -6 ft 3 ft
Use EXCEL program to draw the moment and shear diagrams? 3. 400 Ib 400 lb 200 lb/t 3 ft -6 ft 3 ft
1000 lb 2000 lb Draw the shear and moment for the given beam. 400 lb/ft 200 lb/ft Ksht 5 ft 10 ft 10 ft Ri
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb х A 10 ft B 6 ft 10 ft
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb Х A B 10 ft 6 ft 10 ft
4. SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb 10 ft 6 ft 10 ft B
