The hoist supports the 125-kg engine. Determine the force the load creates in member DB and...

Question

Question

The hoist supports the 125-kg engine. Determine th

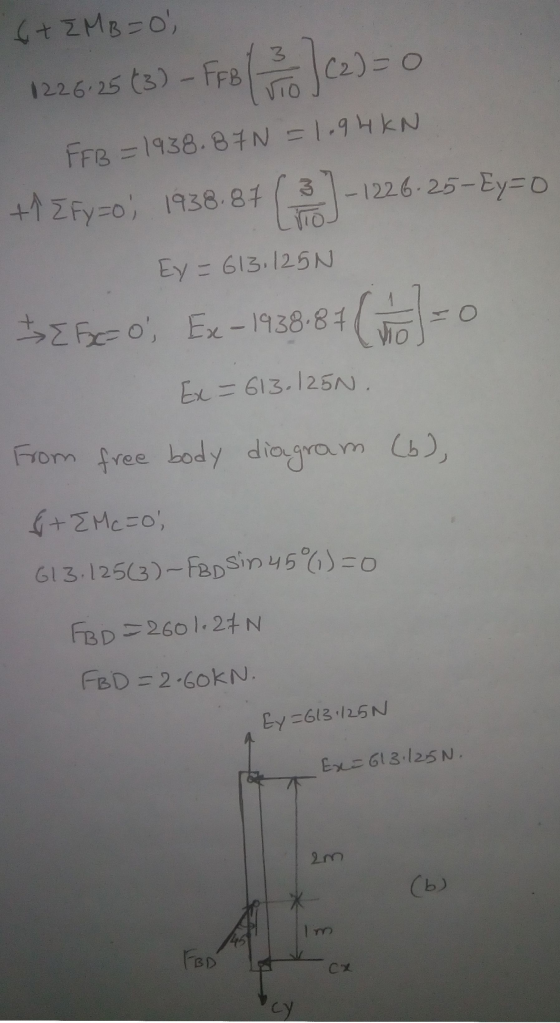

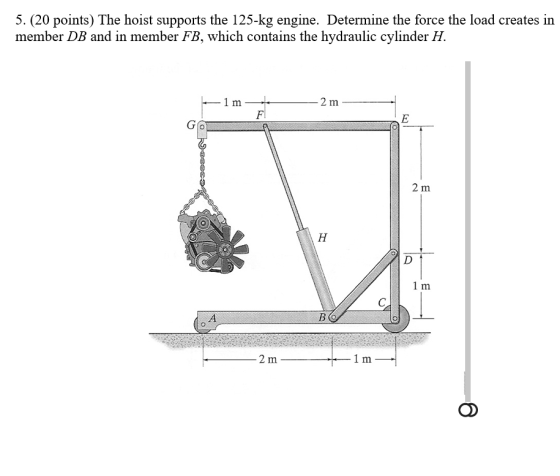

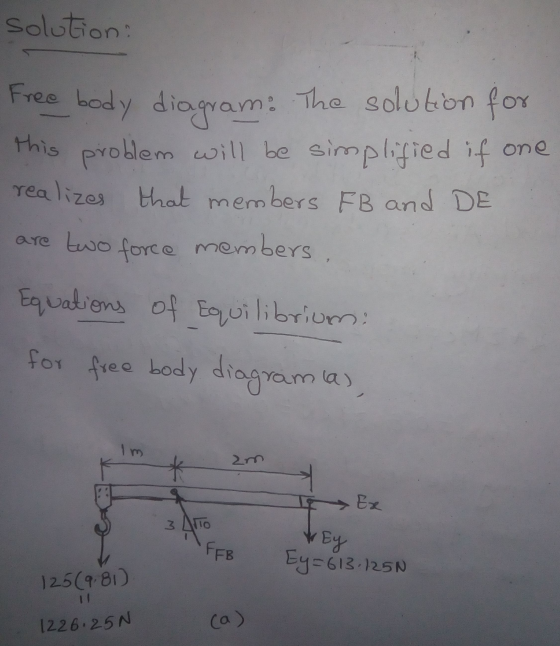

The hoist supports the 125-kg engine. Determine the force the load creates in member DB and in member FB. which contains the hydraulic cylinder H.

engineering Mechanical-Engineering

Answer 1

✔ Recommended Answer

Answer #1

Answer 2

Similar Homework Help Questions

(35 polnts) An engine hoist is shown below. Joint A ls a smooth frletionless pin connection....

(35 polnts) An engine hoist is shown below. Joint A ls a smooth frletionless pin connection. Memher BC contains the hydraulie cylinder. BC is pinned to ACD at C witha smooth frietionless pin. Assume that BC ls a 2-force member. The mass is suspended from D with a cable. Solve for the reaction(s) at A, C, and D (5 points) . Do first Part oly 2.00 0.50 1.00 2.00 250. kg 2.50 Distances m
1400 4 25 The hoist is comprised of three separate parts: a continuous material from A...

1400 4 25 The hoist is comprised of three separate parts: a continuous material from A to Bacon material from B to Cand a hydraulic cylinder that connects these two members at points and E. You can treat point B as a pin joint and point as a fired joint (it can't move The hydraulic cylinder has an outer diameter of 15 mm and a thickness of 3 mm (Figure 1). An average car engine weighs 150 kg Joe requires...
P.1. The tractor boom supports the uniform mass of 475 kg in the bucket which has...

P.1. The tractor boom supports the uniform mass of 475 kg in the bucket which has a center of mass T0.25 m at G. Determine the force in each 1.5 m 0.3 m hydraulic cylinder AB and CD and the resultant force at pins E and F. The load is supported equally on each side of the tractor by a similar mechanism. (20 points) 0.1 m 1.25 m 0.2 m 0.6 m 0.4 m 0.3 m

The frame supports a distributed load and a tension force of P 125 lb, as shown...

The frame supports a distributed load and a tension force of P 125 lb, as shown in the figure below 4 ft 75 lb/ft 4 2 ft 2 ft l ft 30° Part A Determine the resultant internal loadings acting on the cross sections at point D of the frame. Express your answers, separated by commas, to three significant figures. lb, lb, lb ft SubmitP Ans An X Incorrect; Try Again; 2 attempts remaining Part B Determine the resultant internal...
help pls 3 Problem 3. The truss supports a 100 kN load at J. The horizontal...

help pls 3 Problem 3. The truss supports a 100 kN load at J. The horizontal members are each Im in length Use the method of joints to determine the axial force in the member DG. (b) Use the method of sections to determine the axial force in member DG, CD. (35 points) A B C D PJ F G H 100 KN
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...

AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...

Determine the force in each member of the Gambrel roof truss shown if load P =...

Determine the force in each member of the Gambrel roof truss shown if load P = 720 lb. (Round the final answers to their nearest whole number.) 600 lb 600 lb 300lb B 2 ft 4 in. 300 lb 8 ft S ft 8 ft S ft lb. (Compression) lb. (Tension) The force in member AB (FAB) is The force in member AC (FAc) is The force in member BC (FBc) is 0 The force in member CE (FCE) is...
6. Determine the force P required to maintain the 200-kg engine in the position for which...

6. Determine the force P required to maintain the 200-kg engine in the position for which θ = 30°. The diameter of the pulley at B is negligible. 200 kg
Problem 4 (25 pts): The frame supports 75-kg cylinder. Determine the horizontal and vertical components of...

Problem 4 (25 pts): The frame supports 75-kg cylinder. Determine the horizontal and vertical components of force at pins B and C. (Determine the force components at pins B and C) 20. 3m 2m 0.5m

A Hvdraulic Svstem Design A hydraulic-lift table is used to raise a 1506-kg crate It consists of ...

It is about hydraulic system design. Please do a and b. A Hvdraulic Svstem Design A hydraulic-lift table is used to raise a 1506-kg crate It consists of a platform and two identical linkages on which hydraulic cylinders exert equal forces. (Only one linkage and one cylinder are shown.) Members EDB and CG are each of length 2a, and member AD is pinned to the midpoint of EDB. If the crate is placed on the table, so that half of...
