In the circuit shown in Fig. E26.28, find (a) the current in each branch and (b) the potential difference Vab of point a relative to point b.

Question

Question

science physics

Answer 1

✔ Recommended Answer

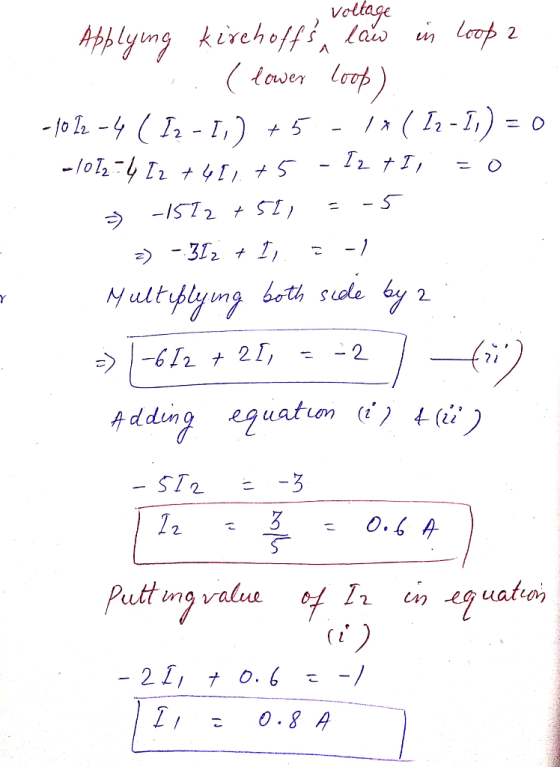

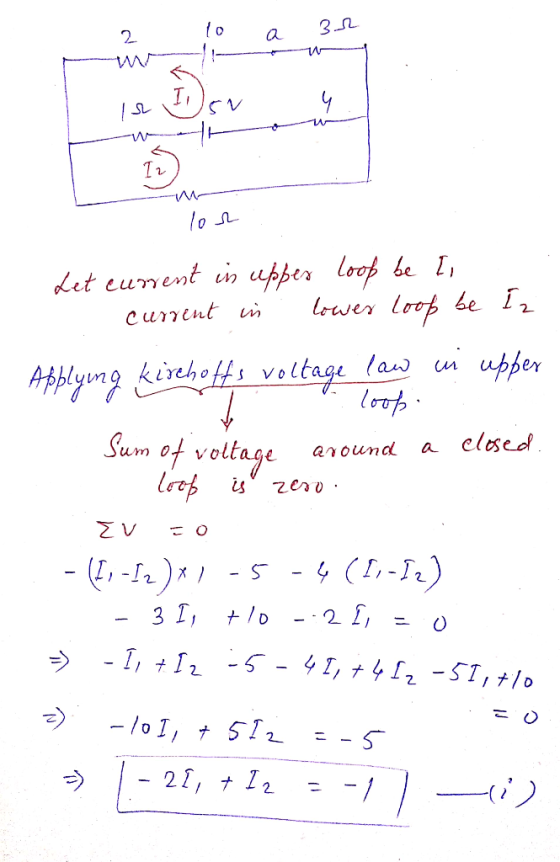

Answer #1

Answer 2
