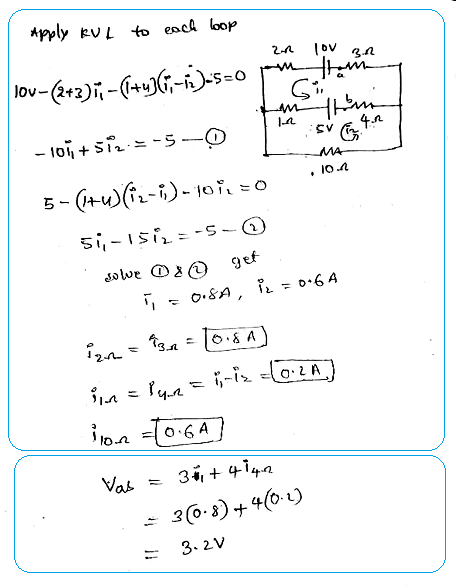

if any mistake in this answer please comment i will clarify your doubt . thank you
Add Answer to:

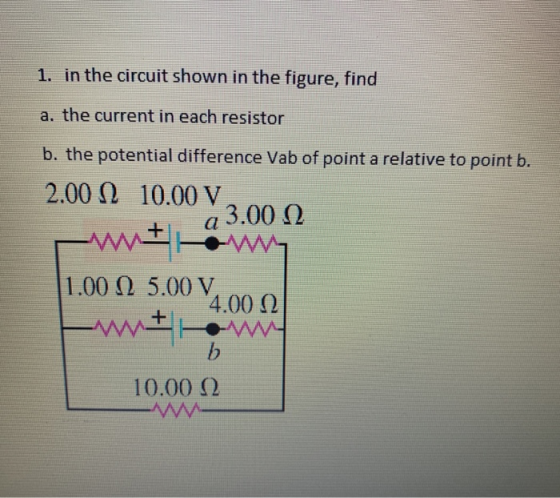

1. in the circuit shown in the figure, find a. the current in each resistor b....
A. For the circuit shown in the figure(Figure 1) find the current through each resistor. B....
A. For the circuit shown in the figure(Figure 1) find the
current through each resistor.
B. For the circuit shown in the figure find the potential
difference across each resistor.
24 V 4 Ω
For the circuit shown in Fig. 6, calculate:(a) the current in the 2.00−Ω resistor.(b) the potential...
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
For the circuit shown in the figure find the current through each resistor. For the circuit...
For the circuit shown in the figure find the current through
each resistor.
For the circuit shown in the figure find the potential
difference across each resistor.
In the circuit shown in the figure below E, 8 V and 2 = 4 V....
In the circuit shown in the figure below E, 8 V and 2 = 4 V. Find the potential difference Vab Va - Vb of point a relative to point b. (Give your answer in decimal using "V" as unit) 2.00 3.00 a + W 1.00 E2 4,00 Ww 10.00
Consider the circuit shown in the figure below. Determine (a) the current in the resistor of...
Consider the circuit shown in the figure below.
Determine
(a) the current in the resistor of
,
(b) the potential difference between points a and b
(c) the power delivered by the voltage source
10.00 25.0 V 10.0 b 5.00 20.0 5.00 We were unable to transcribe this image
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure...
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure 27.P10 Find the potential difference between points A and H. Which point is at the higher potential? Use these values: epsilon_i - 12.0 V, epsilon_2 = 8.00 V. R_1 = 4.00 k Ohm, R_2 = 4.00 k Ohm, R_3 = 2.00 k Ohm
Resistor Circuit Worksheet 25.0 V 10,0n Consider the circuit shown in figure. 10.0n Find: (a) the...
Resistor Circuit Worksheet 25.0 V 10,0n Consider the circuit shown in figure. 10.0n Find: (a) the equivalent resistance of the combination (12.940) S00 (b) the current in the 20.0-0 resistor and (227 mA) (c) the potential difference between points a and b. (5.68 V) s.00n Figure P28.9 25,0V 10.0n 20.0n 5.00 S.00n Figure P28.9
Resistor Circuit Worksheet 25.0 V 10,0n Consider the circuit shown in figure. 10.0n Find: (a) the equivalent resistance of the combination (12.940) S00 (b) the current...
The 5.00 V battery in (Figure 1) is removed from the circuit and replaced by a...
The 5.00 V battery in (Figure 1) is removed from the circuit and replaced by a 15.00 V battery, with its negative terminal next to point b. The rest of the circuit is as shown in the figure. Part A Find the current in the upper branch. Part B Find the current in the middle branch. Part C Find the current in the lower branch. Part D Find the potential difference Vab of point a relative to point b.
In the circuit shown in Fig. E26.28, find (a) the current in each branch and (b) the potential difference Vab of point a relative to point b.
In the circuit shown in Fig. E26.28, find (a) the current in each branch and (b) the potential difference Vab of point a relative to point b.
A. For the circuit shown in the figure(Figure 1) find the
current through each resistor.
B. For the circuit shown in the figure find the potential
difference across each resistor.
24 V 4 Ω
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
For the circuit shown in the figure find the current through
each resistor.
For the circuit shown in the figure find the potential
difference across each resistor.
In the circuit shown in the figure below E, 8 V and 2 = 4 V. Find the potential difference Vab Va - Vb of point a relative to point b. (Give your answer in decimal using "V" as unit) 2.00 3.00 a + W 1.00 E2 4,00 Ww 10.00
Consider the circuit shown in the figure below.
Determine
(a) the current in the resistor of
,
(b) the potential difference between points a and b
(c) the power delivered by the voltage source
10.00 25.0 V 10.0 b 5.00 20.0 5.00 We were unable to transcribe this image
Chapter 27, Problem 21. Find the current through each resistor in the circuit shown in Figure 27.P10 Find the potential difference between points A and H. Which point is at the higher potential? Use these values: epsilon_i - 12.0 V, epsilon_2 = 8.00 V. R_1 = 4.00 k Ohm, R_2 = 4.00 k Ohm, R_3 = 2.00 k Ohm
Resistor Circuit Worksheet 25.0 V 10,0n Consider the circuit shown in figure. 10.0n Find: (a) the equivalent resistance of the combination (12.940) S00 (b) the current in the 20.0-0 resistor and (227 mA) (c) the potential difference between points a and b. (5.68 V) s.00n Figure P28.9 25,0V 10.0n 20.0n 5.00 S.00n Figure P28.9
Resistor Circuit Worksheet 25.0 V 10,0n Consider the circuit shown in figure. 10.0n Find: (a) the equivalent resistance of the combination (12.940) S00 (b) the current...
