The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod?

Question

Question

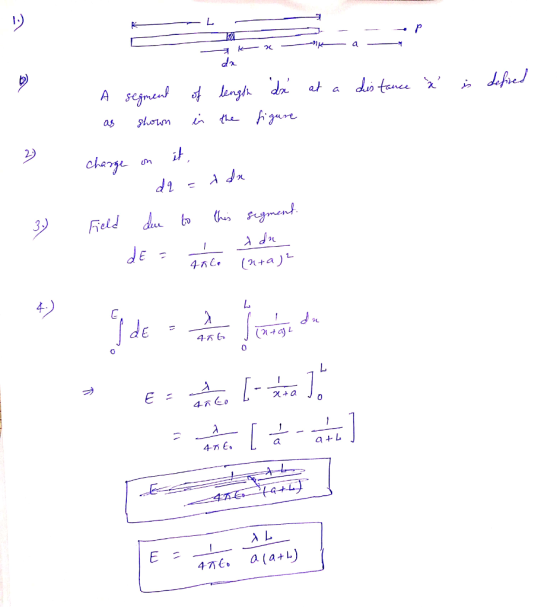

1. Define a segment of charge:

2. Express the charge of one segment:

3. Express the E field of that one segment.

4. Integral each of the components of that field:

science physics

Answer 1

✔ Recommended Answer

Answer #1

Answer 2
