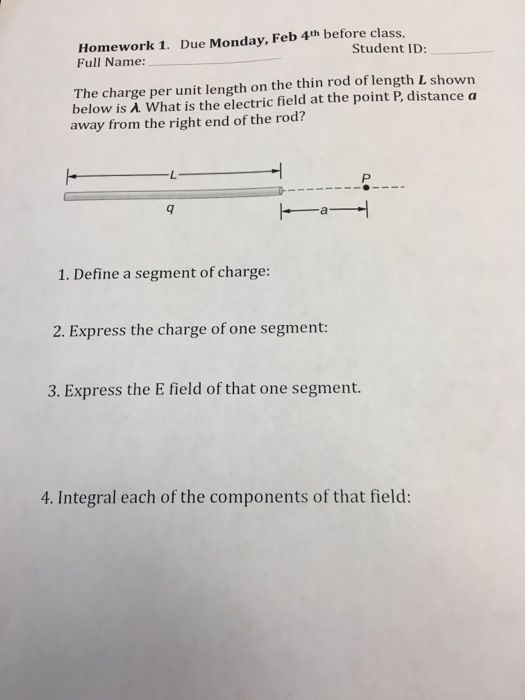

Homework 1. Due Monday, Feb 4th before class. Full Name: Student ID: The charge per unit...
The charge per unit length on the thin rod of length L shown below is λ...

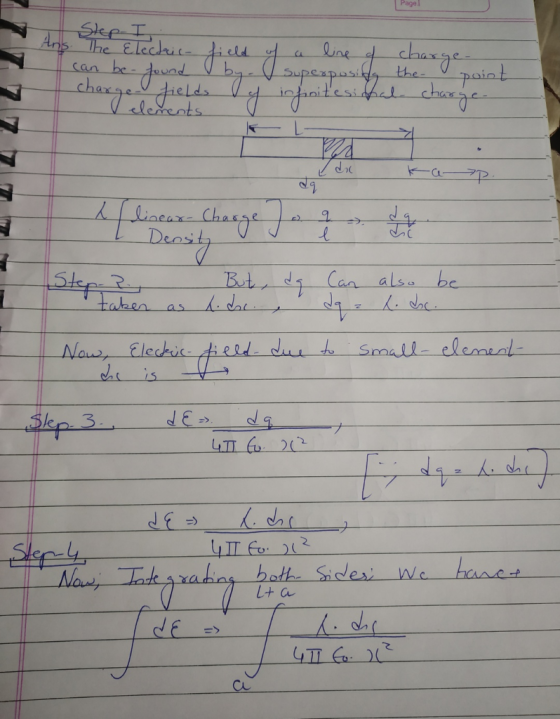

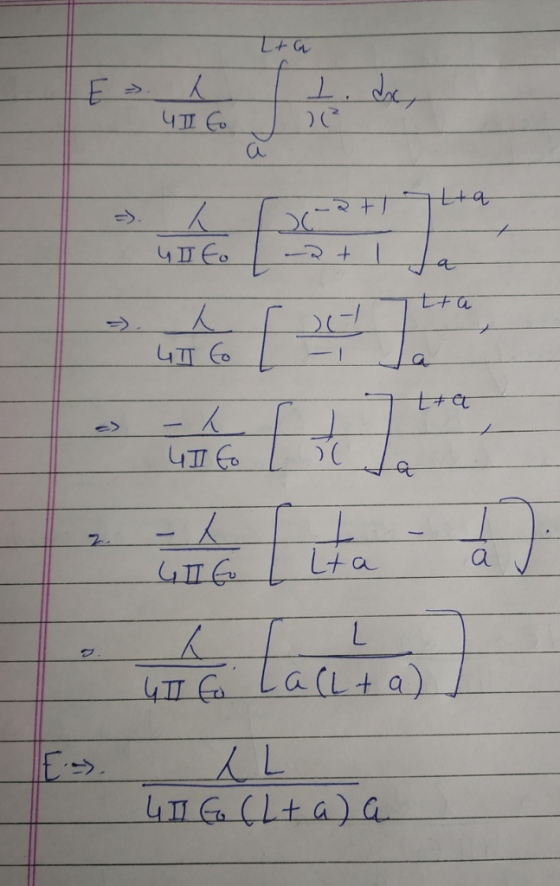

The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod?
The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
The charge per unit length on the thin rod of length L shown below is A...
The charge per unit length on the thin rod of length L shown below is A What is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
A thin rod, with charge per unit length λ has length L. What is the electric...
A thin rod, with charge per unit length λ has length L. What is the electric field, in unit vector notation, a distance d away from one of its ends, perpendicular to the axis of the rod? 8.
Where λ is the charge density per unit length on the rod and εο is called the permittivity of fre...
where λ is the charge density per unit length on the rod and εο is called the permittivity of free space (it is a universal constant with the value 8.854 x 10-12 F/m (farads per metre)) The integral for the electric field can be evaluated exactly using a method called trigonometric substitution with the result AL We won't learn the method of trigonometric substitution in this course; however, you will approximate the value of the integral using methods we introduced...
continuous object using integrals. Consider a thin, charged rod of length, L. It lies along the...
continuous object using integrals. Consider a thin, charged
rod of length, L. It lies along the x-axis with one end at x = 0
and the other end at x = L. It has a non-uniform linear charge
density given by the function
λ(x) = −λ0 + Ax , where λ0 and A are both positive
constants.
(a) What are the units of λ0 and A? Explain.
(b) Suppose that λ0 and A are related such that A = 2λ0/L....
Physics 202: Extra Credit 1 Due 25" Jan in Class Electric Field Superposition Name: Full extra...
Physics 202: Extra Credit 1 Due 25" Jan in Class Electric Field Superposition Name: Full extra credit will result in 0.25% being added to your class grade. This extra credit requires knowledge of calculus and involves using the superposition principle to determine the electric field. Working in groups is strongly encouraged but you must show your own work to get full credit. You may ask me for hints and/or help. Complete 100% accuracy is not necessary for full credit -...
Please Answer only (e) (f) (g) and (h) Other have been answered ! continuous object using...
Please Answer only (e) (f) (g) and (h)
Other have been answered !
continuous object using integrals. Consider a thin, charged rod of length, L It lies along the x-axis with one end at x = 0 and the other end at x = L. It has a non-uniform linear charge density given by the function λ(x)--AO + Ax , where λ0 and A are both positive constants. (a) What are the units of NO and A? Explain (b) Suppose...
PHYS 1122 Homework 1 1. The figure below shows 5 sets of tiny spheres with a...
PHYS 1122 Homework 1 1. The figure below shows 5 sets of tiny spheres with a net charge on them. The spheres are equidistant along the axis. All the values of the net charge are given, except for the middle sphere, which has the same charge in all sets. Rank the sets by the magnitude of the total electrostatic force on the middle sphere, least to greatest a) b) +e c) +e +e +e d) +e +e e) +e te...
PHY-23102-201910 (UNIVERSITY PHYSICS HOMEWORK SET# 1 DUE DATE: MONDAY, JANUARY 28 Please write neatly and do...
PHY-23102-201910 (UNIVERSITY PHYSICS HOMEWORK SET# 1 DUE DATE: MONDAY, JANUARY 28 Please write neatly and do not forget to put your name Problem 1: Consider two vectors: a-ai + 4, and ธิ-5i-bj. Here i is a unit vector (F|-1) along the z-axis and 3 is a unit vector = 1) along the y-axis. (a) Write down the expressions for vectors a +b and a -0 in terms of the unit vectors i and ) (b) Express vector č- a x...
The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
The charge per unit length on the thin rod of length L shown below is A What is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
A thin rod, with charge per unit length λ has length L. What is the electric field, in unit vector notation, a distance d away from one of its ends, perpendicular to the axis of the rod? 8.
where λ is the charge density per unit length on the rod and εο is called the permittivity of free space (it is a universal constant with the value 8.854 x 10-12 F/m (farads per metre)) The integral for the electric field can be evaluated exactly using a method called trigonometric substitution with the result AL We won't learn the method of trigonometric substitution in this course; however, you will approximate the value of the integral using methods we introduced...
continuous object using integrals. Consider a thin, charged
rod of length, L. It lies along the x-axis with one end at x = 0
and the other end at x = L. It has a non-uniform linear charge
density given by the function
λ(x) = −λ0 + Ax , where λ0 and A are both positive
constants.
(a) What are the units of λ0 and A? Explain.
(b) Suppose that λ0 and A are related such that A = 2λ0/L....
Physics 202: Extra Credit 1 Due 25" Jan in Class Electric Field Superposition Name: Full extra credit will result in 0.25% being added to your class grade. This extra credit requires knowledge of calculus and involves using the superposition principle to determine the electric field. Working in groups is strongly encouraged but you must show your own work to get full credit. You may ask me for hints and/or help. Complete 100% accuracy is not necessary for full credit -...
Please Answer only (e) (f) (g) and (h)
Other have been answered !
continuous object using integrals. Consider a thin, charged rod of length, L It lies along the x-axis with one end at x = 0 and the other end at x = L. It has a non-uniform linear charge density given by the function λ(x)--AO + Ax , where λ0 and A are both positive constants. (a) What are the units of NO and A? Explain (b) Suppose...
PHYS 1122 Homework 1 1. The figure below shows 5 sets of tiny spheres with a net charge on them. The spheres are equidistant along the axis. All the values of the net charge are given, except for the middle sphere, which has the same charge in all sets. Rank the sets by the magnitude of the total electrostatic force on the middle sphere, least to greatest a) b) +e c) +e +e +e d) +e +e e) +e te...
PHY-23102-201910 (UNIVERSITY PHYSICS HOMEWORK SET# 1 DUE DATE: MONDAY, JANUARY 28 Please write neatly and do not forget to put your name Problem 1: Consider two vectors: a-ai + 4, and ธิ-5i-bj. Here i is a unit vector (F|-1) along the z-axis and 3 is a unit vector = 1) along the y-axis. (a) Write down the expressions for vectors a +b and a -0 in terms of the unit vectors i and ) (b) Express vector č- a x...
