How much current flows through each of the four resistors?

R3 R4 R1

Consider the circuit shown in the diagram below. The battery has a voltage V=12.0 V and the resistors have the following values.

R1= 3.89 Ω ; R2= 7.78 Ω ; R3= 19.45 Ω ; R4= 11.67 Ω


How much current flows through each of the four resistors?

I1 =

I2 =

I3 =

I4 =


science   physics
2 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

✔ Recommended Answer

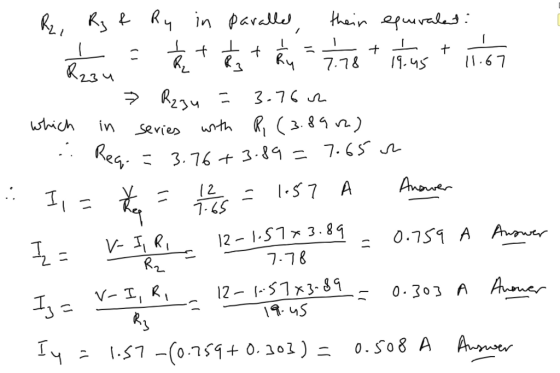

Answer #1
