Consider the circuit shown in the figure(Figure 1). Suppose thefour resistors in this circuit have...

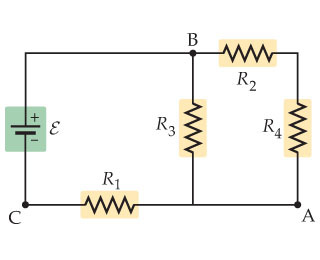

Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R1 = 13 Ω , R2 = 7.2 Ω , R3 = 6.2 Ω , and R4= 13 Ω , and that the emf of the battery is E = 18 V .
Part A
Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas.
I1,I2,I3,I4=______A
Part B
Find the current through each resistor using Kirchhoff's rules. Express your answers using two significant figures separated by commas.
I1,I2,I3,I4=______A

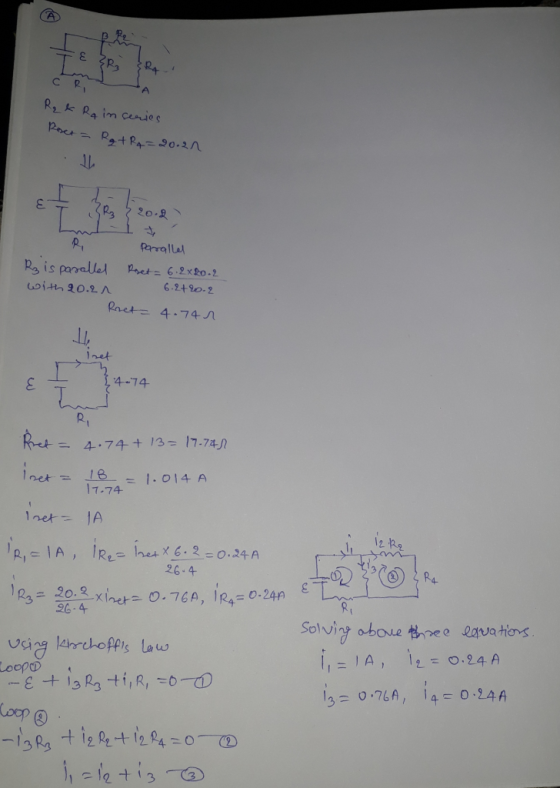

Homework Answers
