Question

A small 12.6 g plastic ball is tied to a very light 28.4 cm string that is attached to the vertical wall of a room.

A small 12.6 g plastic ball is tied to a very light 28.4 cm string that is attached to the vertical wall of a room. (See the figure (Figure 1).) A uniform horizontal electric field exists in this room. When the ball has been given an excess charge of -1.10μC , you observe that it remains suspended, with the string making an angle of 17.4° with the wall.


 Part A

 Find the magnitude of the electric field in the room.


 Part B

 Find the direction of the electric field in the room.

  to the right

  to the left


science   physics
2 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

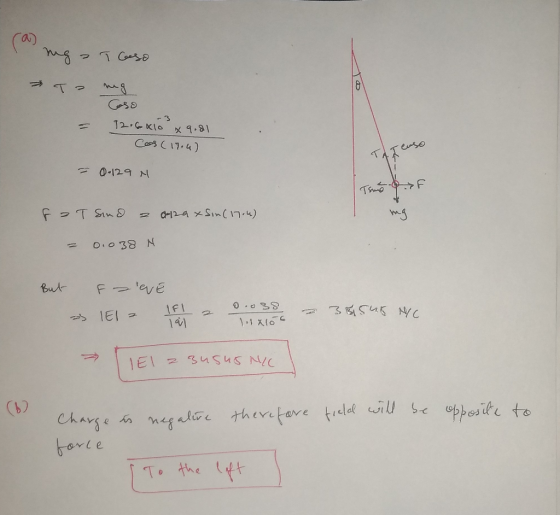

Answer #1

1 0
