A.) charge +Q is distributed uniformly along a straight line of length L. Find the Electric...

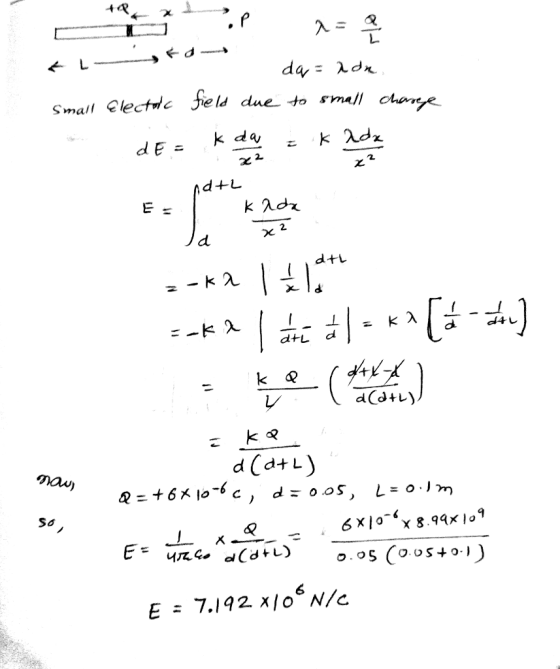

A.) charge +Q is distributed uniformly along a straight line of length L. Find the Electric field at a point P along the direction of the line a distance d from it. Calculate the electric field strength if Q = + 6 μC , L= 0.10m and d = 0.05m.

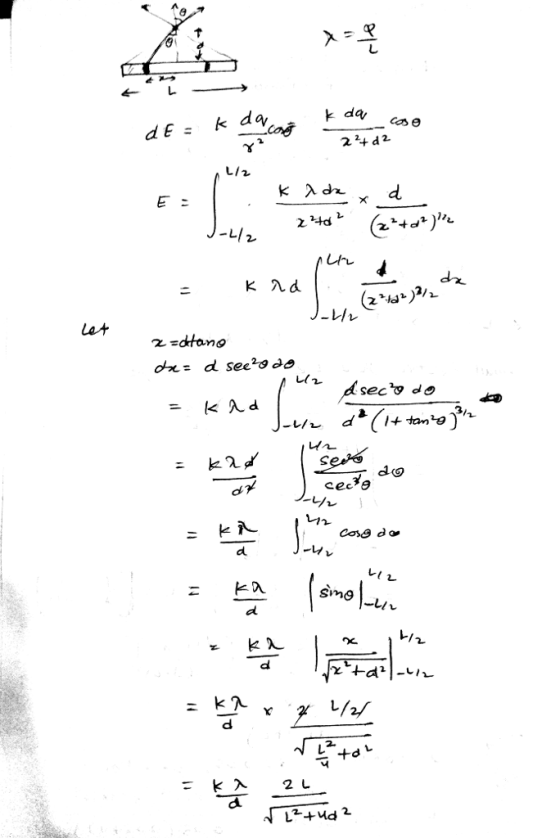

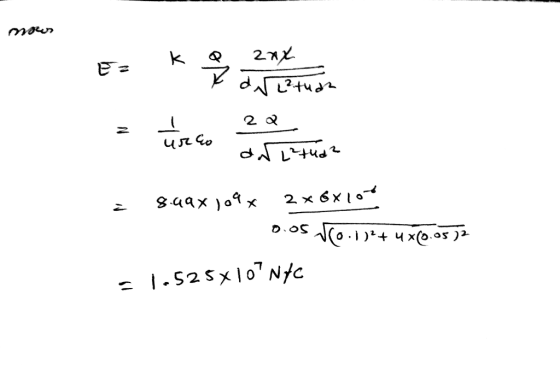

B.) With the same charge distribution, calculate the electric field strength at a point a distance d = 0.05m above or below the mid-point of the charged line.
Homework Answers
Add Answer to:
A.) charge +Q is distributed uniformly along a straight line of
length L. Find the Electric...
A total charge of+Q [fC] is uniformly distributed along the length of a rod of length L [mm] (Fig...
L= 21[mm]; r=24[mm]
A total charge of+Q [fC] is uniformly distributed along the length of a rod of length L [mm] (Fig. H2.1). Determine the electric field and the electric potential at point P, a distance r [mm] from one end of the rod as shown element dr Fig. H2.1
A total charge of+Q [fC] is uniformly distributed along the length of a rod of length L [mm] (Fig. H2.1). Determine the electric field and the electric potential at point...
In the figure a nonconducting rod of length L = 8.41 cm has charge -q = -4.27 fC uniformly distributed along its length.
In the figure a nonconducting rod of length L = 8.41 cm has charge -q = -4.27 fC uniformly distributed along its length. (a) What is the linear charge density of the rod? What are the (b) magnitude and(c) direction (positive angle relative to the positive direction of the x axis) of the electric field produced at point P, at distance a = 12.3 cm from the rod? What is the electric field magnitude produced at distancea = 70 m...
Problem 2 Electric charge is distributed uniformly along a thin rod of length a. with total...
Problem 2 Electric charge is distributed uniformly along a thin rod of length a. with total charge Q. Find the E field at P a) If Q is concentrated at the center of the rod. b) If Q uniformly distributed along the road. c)Suppose that the road is infinity long and point P is at the middle of the road at distance b above the road, what will be the E field at point P?
Problem 2 Electric charge is distributed uniformly along a thin rod of length a, with total...
Problem 2 Electric charge is distributed uniformly along a thin rod of length a, with total charge Q. Find the E field at P. a) If Q is concentrated at the center of the rod. b) If Q uniformly distributed along the road. c)Suppose that the road is infinity long and point P is at the middle of the road at distance b above the road, what will be the E field at point P? 0
A total charge q is distributed uniformly along a thin, straight rod of length L see below Assume q is positive.
A total charge q is distributed uniformly along a thin, straight rod of length L see below Assume q is positive. For the magnitudes, use any variable or symbol stated above along with the following as necessary: a and ε0.) What is the electric field at P1? What is the electric field at P2?
Charge Q is uniformly distributed along a thin, flexible rod of length L.
Charge Q is uniformly distributed along a thin, flexible rod of length L. The rod is then bent into the semicircle shown in the figure (Figure 1).Part A Find an expression for the electric field E at the center of the semicircle. Part BEvaluate the field strength if L = 16 cm and Q = 38 nC
A uniformly charged rod of length L and total charge Q lies along the x axis
8. A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below. Find the components of the electric field at the point P on the y axis a distance d from the origin. ANSWER:
Electric charge is distributed uniformly along a thin rod of length a, with total charge Q. Take the potential to be zero at infinity.
Electric charge is distributed uniformly along a thin rod of
length a, with total charge Q. Take the potential to be zero at
infinity.a. Find the electric field E at point P, a distance x to the
right of the rodb. Find the electric field E at point R, a distance y above of
the rodc. In parts (a) and (b), what does your result reduce to as x or
y becomes much larger than a?
1. Electric charge is distributed uniformly along a R thin rod of length a, with total...
1. Electric charge is distributed uniformly along a R thin rod of length a, with total charge Q. Take the у potential to be zero at infinity e a. Find the electric field Ē at point P, a distance x to the right of the rod (10 pts) b. Find the electric field Ē at point R, a distance y above of the rod (10 pts) c. In parts (a) and (b), what does your result reduce to as x...
A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below.
A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below. (Use the following as necessary: Q, L, d, and ke.) (a) Find the components of the electric field at the point P on the y axis a distance d from the origin (b) What are the approximate values of the field components when d >> L?
L= 21[mm]; r=24[mm]
A total charge of+Q [fC] is uniformly distributed along the length of a rod of length L [mm] (Fig. H2.1). Determine the electric field and the electric potential at point P, a distance r [mm] from one end of the rod as shown element dr Fig. H2.1
A total charge of+Q [fC] is uniformly distributed along the length of a rod of length L [mm] (Fig. H2.1). Determine the electric field and the electric potential at point...
Problem 2 Electric charge is distributed uniformly along a thin rod of length a. with total charge Q. Find the E field at P a) If Q is concentrated at the center of the rod. b) If Q uniformly distributed along the road. c)Suppose that the road is infinity long and point P is at the middle of the road at distance b above the road, what will be the E field at point P?
Problem 2 Electric charge is distributed uniformly along a thin rod of length a, with total charge Q. Find the E field at P. a) If Q is concentrated at the center of the rod. b) If Q uniformly distributed along the road. c)Suppose that the road is infinity long and point P is at the middle of the road at distance b above the road, what will be the E field at point P? 0
1. Electric charge is distributed uniformly along a R thin rod of length a, with total charge Q. Take the у potential to be zero at infinity e a. Find the electric field Ē at point P, a distance x to the right of the rod (10 pts) b. Find the electric field Ē at point R, a distance y above of the rod (10 pts) c. In parts (a) and (b), what does your result reduce to as x...
