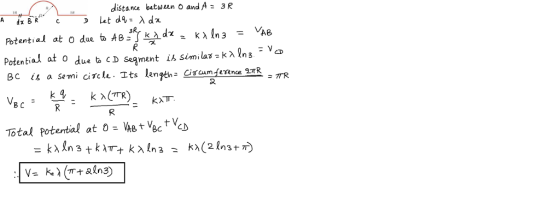

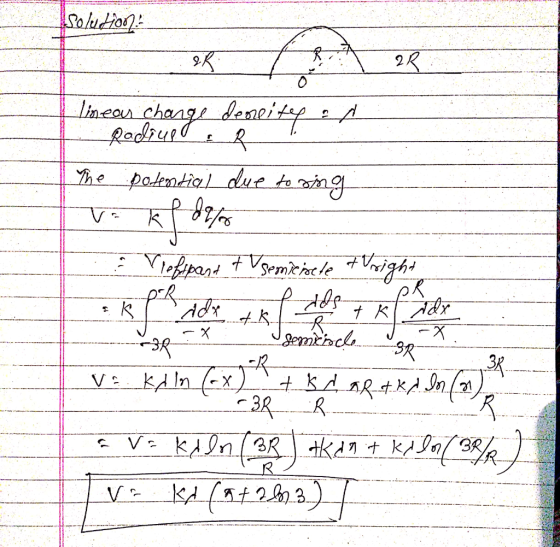

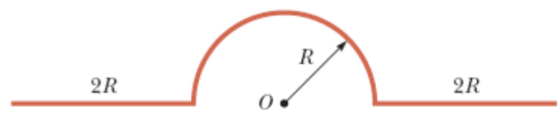

A wire having a uniform linear charge density λ is bent into the shape shown in the figure below. Find the electric potential at point O.
A wire having a uniform linear charge density λ is bent into the shape shown in the figure below. Find the electric potential at point O.
Homework Answers
Add Answer to:
A wire having a uniform linear charge density λ is bent into the shape shown in the figure below. Find the electric potential at point O.
QUESTION 3: A wire having a uniform linear charge density is bent into the shape shown...
QUESTION 3: A wire having a uniform linear charge density is bent into the shape shown in Figure. Find the electric potential at point 0.
A wire having a uniform linear charge density 2 is bent into the shape shown in...
A wire having a uniform linear charge density 2 is bent into the shape shown in the figure below 2R O . - -- - --- - -- - 1. Find the electric potential at a distance "z" along the line passing through "o" and perpendicular to the plane of the wire as shown below (Use the following as necessary: R, ke and 1.)
2. Calculate the electric field of a thin rod of uniform charge density λ is bent...
2. Calculate the electric field of a thin rod of uniform charge density λ is bent into the shape of an arc or radius R. The arc subtends a total angle of 28, symmetric about the x-axis as shown in the figure. What is the electric field at the origin O. Give the answer in terms of the variables in the question.
A plastic rod with uniform linear charge density λ is bent intothe quarter circlea)...
A plastic rod with uniform linear charge density λ is bent into
the quarter circlea) Set up, but do not evaluate them here, definite integrals for
the x-and y-components of the electric field at the origin in terms
of λ, R, and ε0 or K . Clearly indicate your dq, r, dEx, and dEy on
on the figureb) Evaluate the integrals and find the magnitude of the net
electric field at the origin.
A plastic rod, shown on the right, has a uniform linear charge density λ and is bent into a quarter circle. Your goal is to find the electric field at the origin.
Week 3: Electric Field of Continuous Charge Distribution HW A plastic rod, shown on the right, has a uniform linear charge density λ and is bent into a quarter circle. Your goal is to find the electric field at the origin. 1 Label an arbitrary small piece of charge dq at an angle θ as shown in the figure. Draw a vector representing the field at the origin from that small piece of charge.2 Write expressions for the x- and y- components...
The figure below shows a finite line charge with linear charge density of λ and total...
The figure below shows a finite line charge with linear charge
density of λ and total length L. The point P shown is a distance s
away from its end.
Please calculate a formula for the electric field at point P, in
terms of λ, L and s.
Then use the following values to find it
numerically.
λ = +7 μC/m,
L = 4
m, s = 3 m
P = _____ N/C î + _____ N/C
j
The figure...
A semicircular plastic wire of radius R has a uniform linear charge density λ. A point...
A semicircular plastic wire of radius R has a uniform linear charge density λ. A point charge Q is placed at the center of the semicircle. What force does it feel? Give the magnitude and direction.
9.5) Coaxial cable An infinitely long wire carries a uniform linear charge density of −λ. The...
9.5) Coaxial cable An infinitely long wire carries a uniform linear charge density of −λ. The wire is surrounded by a cylindrical sheath of radius a coaxial with the wire. The sheath carries a uniform surface charge density of η = +λ/(2πa). (a) Consider a cylindrical Gaussian surface of radius R and length `coaxial with the cables. How much charge is enclosed in the Gaussian surface for R < a and R > a? (b) What does symmetry dictate about...
An infinitely long straight wire has a uniform linear charge density of λ. Derive the equation...
An infinitely long straight wire has a uniform linear charge density of λ. Derive the equation for the electric field a distance R away from the wire using Gauss's Law for Electrostatics.
A uniformly charged insulating rod o length 11.0 cm is bent into the shape o a semicircle as shown in the figure below.
A uniformly charged insulating rod o length 11.0 cm is bent into the shape o a semicircle as shown in the figure below. The rod has a total charge of -7.00 μC Find the electric potential at O, the center of the semicircle.
QUESTION 3: A wire having a uniform linear charge density is bent into the shape shown in Figure. Find the electric potential at point 0.
A wire having a uniform linear charge density 2 is bent into the shape shown in the figure below 2R O . - -- - --- - -- - 1. Find the electric potential at a distance "z" along the line passing through "o" and perpendicular to the plane of the wire as shown below (Use the following as necessary: R, ke and 1.)
2. Calculate the electric field of a thin rod of uniform charge density λ is bent into the shape of an arc or radius R. The arc subtends a total angle of 28, symmetric about the x-axis as shown in the figure. What is the electric field at the origin O. Give the answer in terms of the variables in the question.
A plastic rod with uniform linear charge density λ is bent into
the quarter circlea) Set up, but do not evaluate them here, definite integrals for
the x-and y-components of the electric field at the origin in terms
of λ, R, and ε0 or K . Clearly indicate your dq, r, dEx, and dEy on
on the figureb) Evaluate the integrals and find the magnitude of the net
electric field at the origin.
The figure below shows a finite line charge with linear charge
density of λ and total length L. The point P shown is a distance s
away from its end.
Please calculate a formula for the electric field at point P, in
terms of λ, L and s.
Then use the following values to find it
numerically.
λ = +7 μC/m,
L = 4
m, s = 3 m
P = _____ N/C î + _____ N/C
j
The figure...
