A semicircular plastic wire of radius R has a uniform linear charge density λ. A point...

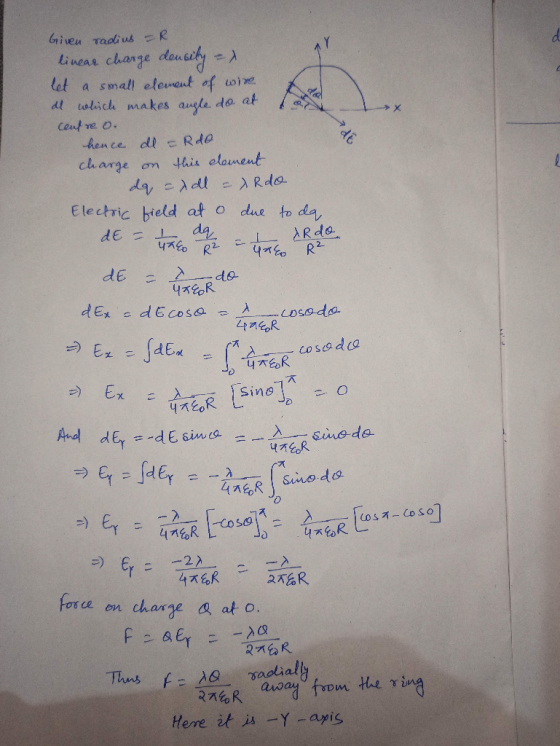

A semicircular plastic wire of radius R has a uniform linear charge density λ. A point charge Q is placed at the center of the semicircle. What force does it feel? Give the magnitude and direction.
Homework Answers
Add Answer to:
A semicircular plastic wire of radius R has a uniform linear
charge density λ. A point...
9.5) Coaxial cable An infinitely long wire carries a uniform linear charge density of −λ. The...
9.5) Coaxial cable An infinitely long wire carries a uniform linear charge density of −λ. The wire is surrounded by a cylindrical sheath of radius a coaxial with the wire. The sheath carries a uniform surface charge density of η = +λ/(2πa). (a) Consider a cylindrical Gaussian surface of radius R and length `coaxial with the cables. How much charge is enclosed in the Gaussian surface for R < a and R > a? (b) What does symmetry dictate about...
An infinitely long straight wire has a uniform linear charge density of λ. Derive the equation...
An infinitely long straight wire has a uniform linear charge density of λ. Derive the equation for the electric field a distance R away from the wire using Gauss's Law for Electrostatics.
Consider a charged ring with radius R and uniform line charge density +λ.
Consider a charged ring with radius R and uniform line charge density +λ.(a) Find the electric field at the center O of the ring. (b) What is the electric field at a field point P which is on the central axis with a distance z above the center? (c) Show that in the limit when z » R, the electric field reduces to the form Does this result physically make sense? Explain. (d) Using binomial approximation, , find the electric field at points along the...
A plastic rod with uniform linear charge density λ is bent intothe quarter circlea)...
A plastic rod with uniform linear charge density λ is bent into
the quarter circlea) Set up, but do not evaluate them here, definite integrals for
the x-and y-components of the electric field at the origin in terms
of λ, R, and ε0 or K . Clearly indicate your dq, r, dEx, and dEy on
on the figureb) Evaluate the integrals and find the magnitude of the net
electric field at the origin.
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as...
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as shown in the figure below. The charge per unit length along the semicircle is given by the expression λ-, cos@). The total charge on the semicircle is 13.0 μC. Calculate the total force on a charge of 2.00 μC placed at the center of curvature magnitude direction Select
The charge per unit length on the thin semicircular wire shown below is λ, what is the electric field at the point P?
The charge per unit length on the thin semicircular wire shown below is λ, what is the electric field at the point P? Assume that λ is positive. For the magnitude, use the following as necessary: ε0 , λ and r)
A wire having a uniform linear charge density λ is bent into the shape shown in the figure below. Find the electric potential at point O.
A wire having a uniform linear charge density λ is bent into the shape shown in the figure below. Find the electric potential at point O.
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as...
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as shown in the figure below. The charge per unit length along the semicircle is given by the expression λ,cos(8). The total charge on the semicircle is 13.0 μC. Calculate the total force on a charge of 2.00 μC placed at the center of curvature. magnitude Poor response differs from the correct answer by more than 100%. direction upward
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y...
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +Q +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right Write down an expression for the electric field dE at the center...
A piece of thin, non-conductive wire is bent into a semicircle of radius r. It is...
A piece of thin, non-conductive wire is bent into a semicircle of radius r. It is then charged with a uniform linear charge density lambda. Integrate to find the electric potential at the center of the (half) circle.
A plastic rod with uniform linear charge density λ is bent into
the quarter circlea) Set up, but do not evaluate them here, definite integrals for
the x-and y-components of the electric field at the origin in terms
of λ, R, and ε0 or K . Clearly indicate your dq, r, dEx, and dEy on
on the figureb) Evaluate the integrals and find the magnitude of the net
electric field at the origin.
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as shown in the figure below. The charge per unit length along the semicircle is given by the expression λ-, cos@). The total charge on the semicircle is 13.0 μC. Calculate the total force on a charge of 2.00 μC placed at the center of curvature magnitude direction Select
A line of positive charge is formed into a semicircle of radius R 80.0 cm, as shown in the figure below. The charge per unit length along the semicircle is given by the expression λ,cos(8). The total charge on the semicircle is 13.0 μC. Calculate the total force on a charge of 2.00 μC placed at the center of curvature. magnitude Poor response differs from the correct answer by more than 100%. direction upward
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +Q +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right Write down an expression for the electric field dE at the center...
