Consider two points in an electric field. The potential at point 1, V1 is 22 V. The potential at point 2, V2 is 168 V.

Question

Question

Consider two points in an electric field. The potential at point 1, V1 is 22 V. The potential at point 2, V2 is 168 V.

Consider two points in an electric field. The potential at point 1, V1 is 22 V. The potential at point 2, V2 is 168 V. An electron at rest at point I is accelerated by the electric field to point 2.

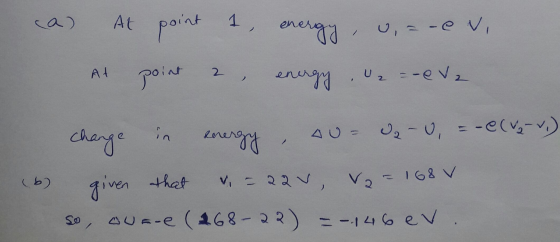

Part (a) Write an equation for the change of electric potential energy ΔU of the electron in terms of the symbols given.

Select from the variables below to write your expression. Note that all variables may not be required.

Part (b) Find the numerical value of the change of the electric potential energy in electron volts (cV).

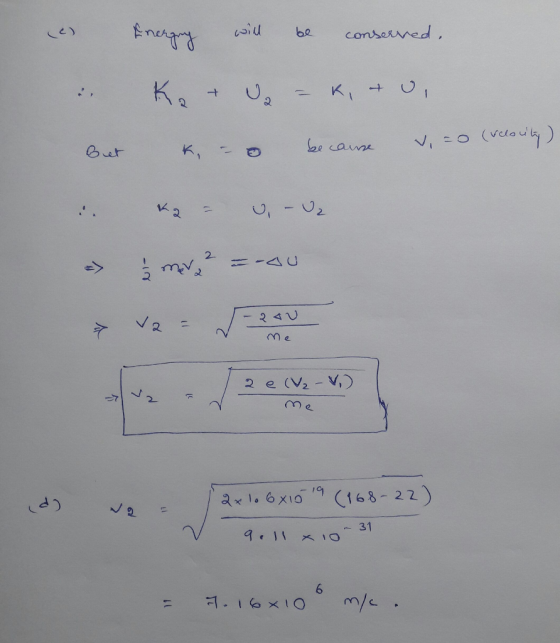

Part (c) Express v2 the speed of the electron at point 2, in terms of ΔU, and the mass of the electron m_e.

Part (d) Find the numerical value of v₂ in m/s.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
