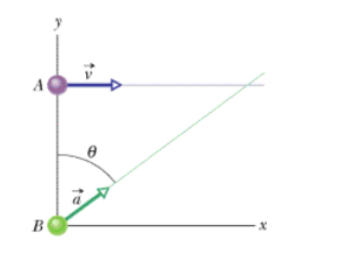

In the figure, particle A moves along the line y = 33 m with a constant velocity v of magnitude 2.7 m/s and directed parallel to the x axis

In the figure, particle A moves along the line y = 33 m with a constant velocity v of magnitude 2.7 m/s and directed parallel to the x axis. At the instant particle A passes the y axis, particle B leaves the origin with zero initial speed and constant acceleration ã of magnitude 0.46 m/s2. What angle θ between a and the positive direction of the y axis would result in a collision?


science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

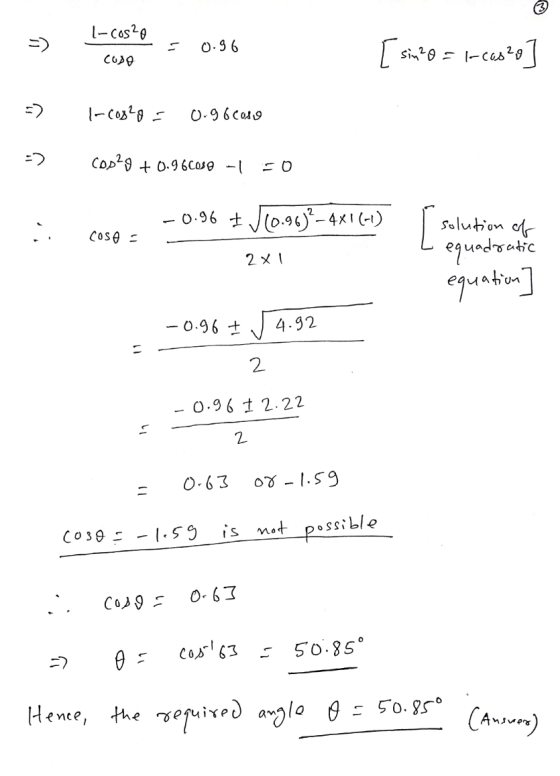

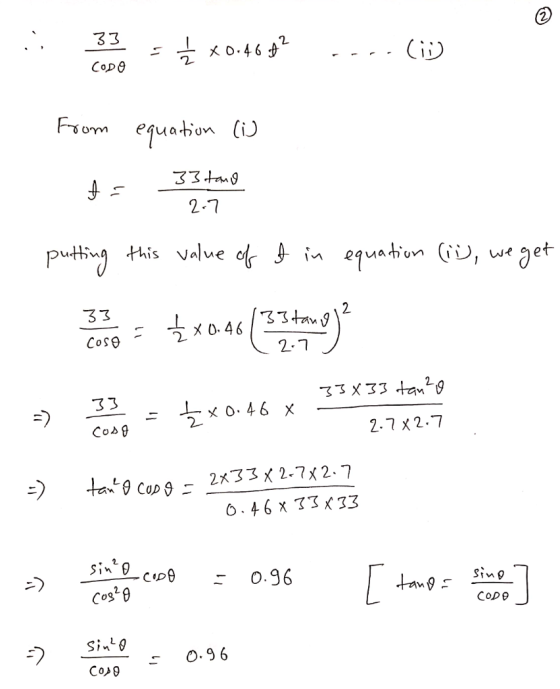

Answer #1

3 0
Add a comment
