A charged particle moves along the x-axis through a region with a uniform magnetic field that...
A charged particle moves along the x-axis through a region with a uniform magnetic field that is oriented to lie in the x-y plane.

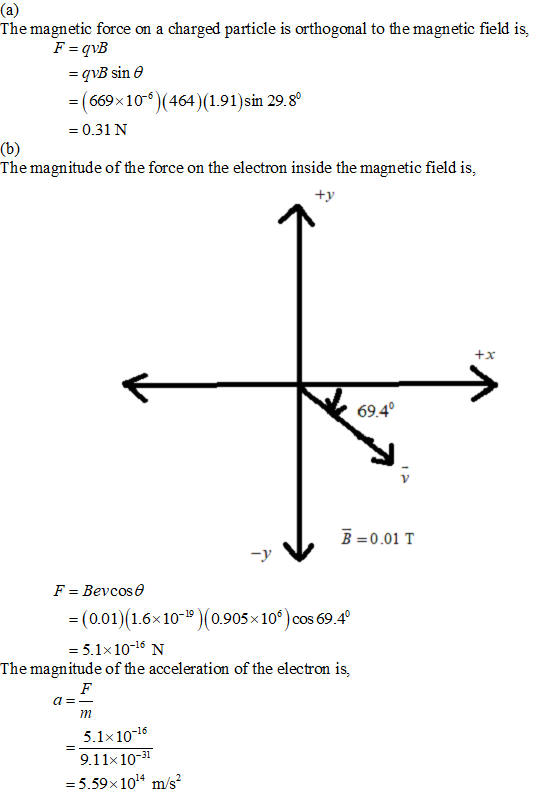

Part a)
Assume that the particle has a net charge of +669 μC and is moving with a velocity of 464 m/s in the +x direction at a particular instant. In that region of space, there is a uniform magnetic field of 1.91T directed in the x-y plane at an angle of +29.8 ∘ relative to the +x axis. What is the magnitude of the magnetic force on the charge at that instant? (Answer in N)
Part b)
An electron travels through a particular point in an experimental apparatus with a velocity of 0.905 ×10^6 m/s and at an angle of +69.4∘ (clockwise) relative to the positive x-axis in the x-y plane. If the magnetic field at this point has a magnitude of 0.01 T and is directed in along the negative y-axis, what is the magnitude of the acceleration of the electron at this point? (It is advisable to sketch a picture of the situation first.)
Homework Answers
