An electron travels through a particular point in an experimental apparatus with a velocity of 0.822...

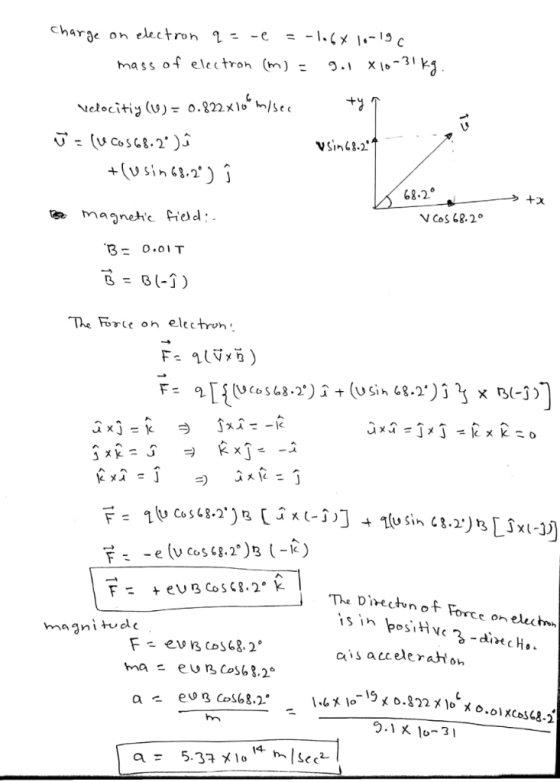

An electron travels through a particular point in an experimental apparatus with a velocity of 0.822 10^6 m/s and at an angle of +68.2∘ (counter-clockwise) relative to the positive x-axis in the x-y plane. If the magnetic field at this point has a magnitude of 0.01 T and is directed in along the negative y-axis, what is the magnitude of the acceleration of the electron at this point? (It is advisable to sketch a picture of the situation first.)
Homework Answers
Add Answer to:
An electron travels through a particular point in an
experimental apparatus with a velocity of 0.822...
