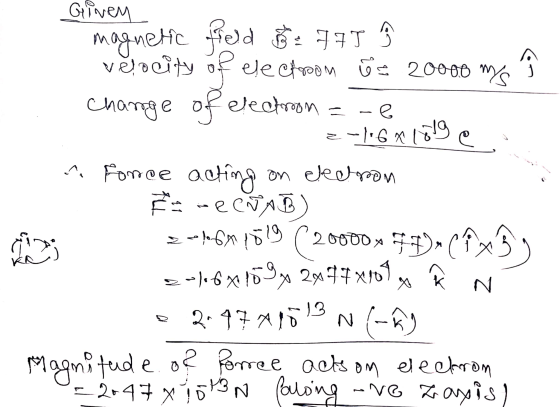

An electron is moving (along x-axis) through a 77 T magnetic field (along y-axis) at a perpendicular velocity of 20000 m/s. Find the magnitude and direction of the magnetic force experienced by the electron. (Here is a picture not sure if you need it. if not disregard.)
Homework Answers
Add Answer to:
An electron is moving (along x-axis) through a 77 T magnetic
field (along y-axis) at a...
. An electron is moving (along x-axis) through a 50 T magnetic field (along y-axis) at...
. An electron is moving (along x-axis) through a 50 T magnetic field (along y-axis) at a perpendicular velocity of 20000 m/s. Find the magnitude and direction of the magnetic force experienced by the electron. having hard time pleases go step by step
An electron is moving (along x-axis) through a 50 T magnetic field (along y-axis) at a...
An electron is moving (along x-axis) through a 50 T magnetic field (along y-axis) at a perpendicular velocity of 20000 m/s. Find the magnitude and direction of the magnetic force experienced by the electron. which law is this using and can you break it down step by step im still not understanding
A charged particle moves along the x-axis through a region with a uniform magnetic field that...
A charged particle moves along the x-axis through a region with a uniform magnetic field that is oriented to lie in the x-y plane. Part a) Assume that the particle has a net charge of +669 μC and is moving with a velocity of 464 m/s in the +x direction at a particular instant. In that region of space, there is a uniform magnetic field of 1.91T directed in the x-y plane at an angle of +29.8 ∘ relative to...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
A uniform magnetic field of magnitude 0.150 T is directed along the positive x-axis. An electron...
A uniform magnetic field of magnitude 0.150 T is directed along the positive x-axis. An electron moving at 10.00 x 106 m/s enters the field along a direction that makes an angle of 60.0o with the x-axis. The motion of the particle is expected to be a helix. Calculate (a) the pitch p and (b) the radius r of the trajectory.
An electron moving in the direction of the +x-axis enters a magnetic field. If the electron...
An electron moving in the direction of the +x-axis enters a magnetic field. If the electron experiences a magnetic deflection in the -y direction, the direction of the magnetic field in this region points in the direction of the -y-axis. -z-axis. +z-axis. +y-axis. -x-axis.
1. Which of the following charged particles moving in a static uniform magnetic field feels no...
1. Which of the following charged particles moving in a static uniform magnetic field feels no force? A. an electron with velocity opposite the direction of the magnetic field B. an electron with velocity perpendicular to the magnetic field C. a proton with velocity perpendicular to the magnetic field D. a proton with velocity making a 45 degree angle with the magnetic field 2. An electron enters a region where a uniform magnetic field points in the +z direction. If...
At time t_1 an electron is sent along the positive direction of an x axis, through...
At time t_1 an electron is sent along the positive direction of an x axis, through both an electric field E and a magnetic field B, with E directed parallel to the y axis. The figure gives the y component F_net, y of the net force on the electron due to the two fields, as a function of the electron's speed v at time t_1. The scale of the velocity axis is set by v_s = 95 m/s. The x...
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in...
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in the +y direction At the instant that the electron is moving in the +z direction with a velocity of 2.86e6 m/s, it experiences a magnetic force of 1.24 pN in the +x direction. Calculate the magnitude of the magnetic field
A current I =15 A is directed along the positive x-axis and perpendicular to a magnetic...
A current I =15 A is directed along the positive x-axis and perpendicular to a magnetic field. A magnetic force per unit length of 0.12 N/m acts on the conductor in the negative y -direction. Calculate the magnitude and direction of the magnetic field in the region through which the current passes.
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
At time t_1 an electron is sent along the positive direction of an x axis, through both an electric field E and a magnetic field B, with E directed parallel to the y axis. The figure gives the y component F_net, y of the net force on the electron due to the two fields, as a function of the electron's speed v at time t_1. The scale of the velocity axis is set by v_s = 95 m/s. The x...
