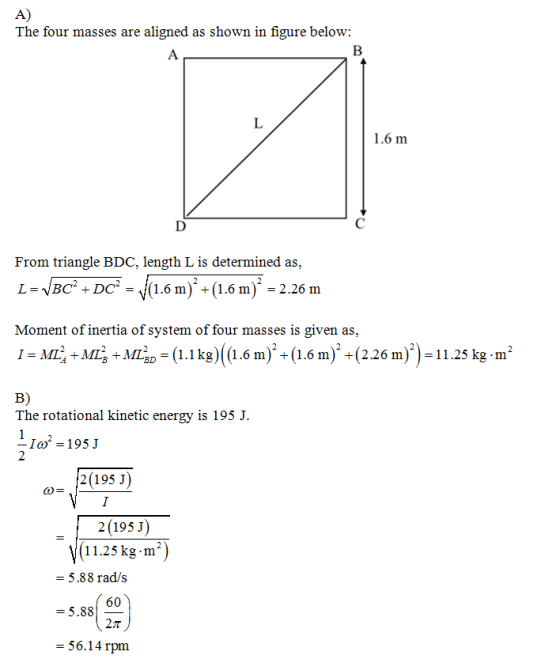

Four point masses, each of mass 1.1 kg are placed at the corners of a square...
Four point masses, each of mass 1.1 kg are placed at the corners of a square of side 1.6 m.
A. Find the moment of inertia of this system about an axis that is perpendicular to the plane of the square and passes through one of the masses.
B. If the system is set rotating about the above axis with kinetic energy of 195.0 J, what is the number of revolutions the system makes per minute
Homework Answers
Add Answer to:
Four point masses, each of mass 1.1 kg are placed at the corners
of a square...
Four identical masses of mass 9.00 kg each are placed at the corners of a square...
Four identical masses of mass 9.00 kg each are placed at the corners of a square whose side lengths are 3.00 m . What is the magnitude of the net gravitational force on one of the masses, due to the other three? What is the direction of the net gravitational force on one of the masses, due to the other three? perpendicular to the plane of the square away from the center of the square toward the center of the...
Four point masses of 50g each are in the corners of a square of sides of...
Four point masses of 50g each are in the corners of a square of
sides of 20cm. What is the moment of inertia of these masses if
they rotate along an axis of rotation that passes through the
middle of the masses as shown in the figure on the side?
as т m Аxis т
Four identical masses of mass 8.00 kg each are placed at the corners of a square...
Four identical masses of mass 8.00 kg each are placed at the corners of a square whose side lengths are 2.50 m. Part A What is the magnitude of the net gravitational force on one of the masses, due to the other three? Express your answer with the appropriate units. Feet = Value Units Submit Request Answer - Part B What is the direction of the net gravitational force on one of the masses, due to the other three? perpendicular...
Four particles at the corners of a square with a side length L=2.00m are connected by...
Four particles at the corners of a square with a side length L=2.00m are connected by massless rods. The particle masses are m1= m4=4.00kg and m2= m3 = 16.0 kg. Pairs of particles with equal masses are located at opposite corners of the square. Find the moment of inertia of the system about the z-axis that passes through a corner of the square where the particle has a mass of m=16.00kg.
Four particles at the corners of a square with a side length L=4.00m are connected by...
Four particles at the corners of a square with a side length L=4.00m are connected by massless rods. The particle masses are m1= m4=2.00kg and m2= m3 = 16.0 kg. Pairs of particles with equal masses are located at opposite corners of the square. Find the moment of inertia of the system about the z-axis that passes through a corner of the square where the particle has a mass of m=16.00kg.
4) Rotational Inertia: point masses Four masses are held in position at the corners of a...
4) Rotational Inertia: point masses Four masses are held in position at the corners of a rectangle by light (massless) rods (see figure). Find the rotational inertia (moment of inertia) of the system (a) about the x-axis, (b) about the y-axis (c) about an axis through O perpendicular to the page. 4) Rotational Inertia: point masses Four masses are held in position at the corners of a rectangle by light (massless) rods (see figure). Find the rotational inertia (moment of...
Four particles with masses 4 kg, 6 kg, 4 kg, and 6 kg are connected by rigid rods of negligible mass as shown.
011. Four particles with masses 4 kg, 6 kg, 4 kg, and 6 kg are connected by rigid rods of negligible mass as shown. The origin is centered on the mass in the lower left corner. The rectangle is 6 m wide and 5 m long. If the system rotates in the xy plane about the z axis (origin, O) with an angular speed of 5 rad/s, calculate the moment of inertia of the system about the z axis. 012. Find the...
Four 8.00 kg masses are bound into a square by four mass-less rigid rods that are...
Four 8.00 kg masses are bound into a square by four mass-less rigid rods that are 2.00 m long and form the sides of the square. Find the moment inertia, I, of this object for rotation about an axis perpendicular to plane of the object and through the center of one of the rods.
Problem 9-43: Four particles at the corners of a square with a side length L-5.00m are connected by massless rods. The...
Problem 9-43: Four particles at the corners of a square with a side length L-5.00m are connected by massless rods. The particle masses are m1= m4=5.00kg and m2= m3 particles with equal masses are located at opposite corners of the square. Find the moment of inertia of the system about the z-axis that passes through a corner of the square where the particle has a mass of m=15.00kg. 15.0 kg. Pairs of Tries 0/10 Submit Answer
Four identical particles of mass m each are placed at the vertices of a square with side length a and held by four massless rods, which form the sides of the square. (Use any variable stated above.)
Four identical particles of mass m each are placed at the vertices of a square with side length a and held by four massless rods, which form the sides of the square. (Use any variable stated above.) a. What is the rotational inertia of this rigid body about an axis passes through the midpoint of opposite sides and lies in the plane of the square? b. What is the rotational inertia of this rigid body about an axis that passes through...
Four point masses of 50g each are in the corners of a square of
sides of 20cm. What is the moment of inertia of these masses if
they rotate along an axis of rotation that passes through the
middle of the masses as shown in the figure on the side?
as т m Аxis т
Four identical masses of mass 8.00 kg each are placed at the corners of a square whose side lengths are 2.50 m. Part A What is the magnitude of the net gravitational force on one of the masses, due to the other three? Express your answer with the appropriate units. Feet = Value Units Submit Request Answer - Part B What is the direction of the net gravitational force on one of the masses, due to the other three? perpendicular...
Problem 9-43: Four particles at the corners of a square with a side length L-5.00m are connected by massless rods. The particle masses are m1= m4=5.00kg and m2= m3 particles with equal masses are located at opposite corners of the square. Find the moment of inertia of the system about the z-axis that passes through a corner of the square where the particle has a mass of m=15.00kg. 15.0 kg. Pairs of Tries 0/10 Submit Answer
