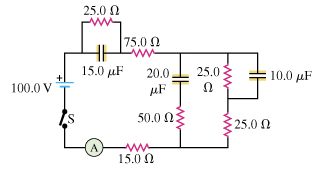

In the circuit in (Figure 1) the capacitors are all initially uncharged, the battery has no internal resistance, and the ammeter is idealized.

Question

Question

For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Charging a capacitor.

Part A

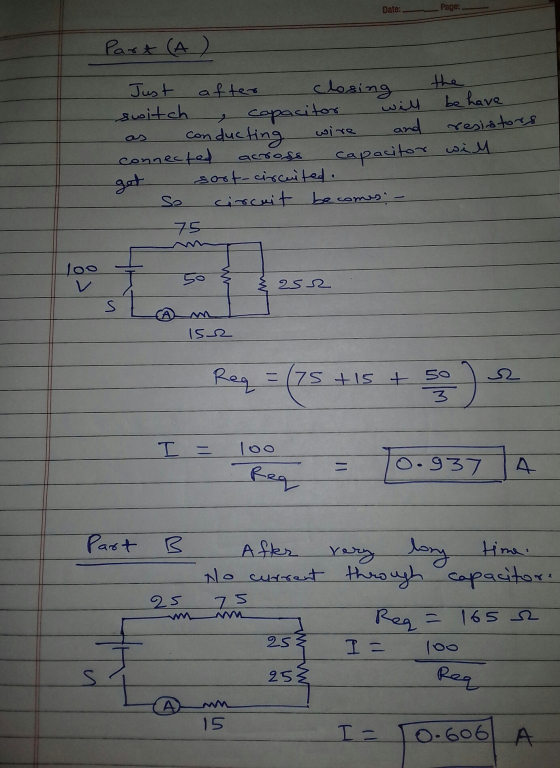

Find the reading of the ammeter just after the switch S is closed.

Part B

Find the reading of the ammeter after the switch has been closed for a very long time.

science physics

Answer 1

✔ Recommended Answer

Answer #1

Answer 2

Similar Homework Help Questions

In the circuit shown in (Figure 1) all meters are idealized and the batteries have no appreciable Internal resistance.

In the circuit shown in (Figure 1) all meters are idealized and the batteries have no appreciable Internal resistance. For related problem solving tips and strategies, you may want to view a Video Tutor Solution of A complex network. Part B Find the reading of the voltmeter with the switch S open. PartC With the switch closed, find the reading of the voltmeter. Part D With the switch closed, find the reading of the ammeter. Part E Which way (up or down) does the curent fiow through the switch?
Consider the circuit shown in the figure (Figure 1).

Consider the circuit shown in the figure (Figure 1).For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of Series versus parallel combinations.Part AFind the reading of the idealized ammeter if the battery has an internal resistance of 3.76 Ω.
Part A In the circuit shown in (Figure 1) the batteries have negligible internal resistance and...

In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 11.0 V.For related problem solving tips and strategies, you may want to view a Video Tutor Solution of A complex network.Part AFind the emf ε of the battery.Part BWhat will the ammeter read when the switch is closed?

You charge an initially uncharged 32.0 milliFarad capacitor through a 71.7ohm resistor by means of a 12V battery with negligible internal resistance.

You charge an initially uncharged 32.0 milliFarad capacitor through a 71.7ohm resistor by means of a 12V battery with negligible internal resistance. At t-0 the switch is closed to complete the circuit [2] What is the time constant for this charging: [2] What is the charge of the capacitor 0.73 time constants after the circuit is closed? [2] What is the charge of the capacitor after a very long time? [4] Write the equation describing the voltage across the resistor as a function of...
For the circuit shown in (Figure 1) both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.40 A.

For the circuit shown in (Figure 1) both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.40 A. Part A What does the voltmeter read?Part B What is the emf & of the battery?
In the circuit shown in (Figure 1) both capacitors are initially charged to 40.0 V Part...

In the circuit shown in (Figure 1) both capacitors are initially charged to 40.0 VFor related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Discharging a capacitor.Part AHow long after closing the switch S will the potential across each capacitor be reduced to 15.0 V ?Part BWhat will be the current at that time?

In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized.

In the circuit shown in the figure (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 13.0 V. Find the emf epsilon of the battery. What will the ammeter read when the switch is closed?
For the circuit shown in the figure, both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.45 A.

For the circuit shown in the figure, both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.45 A.a) What does the voltmeter read?b) What is the emf ε of the battery?
Q2. In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time...

Q2. In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). 2- In the RC Circuit shown in Figure 2, the capacitor is initially uncharged (at time t=0). (ignore the internal resistance of the battery) Figure 2 C= 5.0nF a) Calculate the current I released by the battery, just after the switch S is closed at t=0, (7 pts) b) Calculate the max. power dissipated in the lightbulb, (9 pts) c) Now lets open...

In the circuit shown in the figure 1 both batteries have insignificant internal resistance and the idealized ammeter reads 1.90 A

In the circuit shown in the figure 1 both batteries have insignificant internal resistance and the idealized ammeter reads 1.90 A in the direction shown.Find the emf ε of the battery. Is the polarity shown correct? Yes or No
